UltraSky Roof Lantern
The UltraSky lantern is the perfect solution for a new build traditional Orangery, extension or can be inserted into an existing flat roof to help give you the feeling of light and space.
Shop NowInstalled on a new build extension, Orangery, or inserted into an existing flat roof, an UltraSky lantern will help you add the feeling of space and natural light to your home.

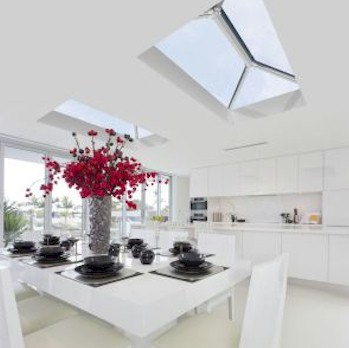

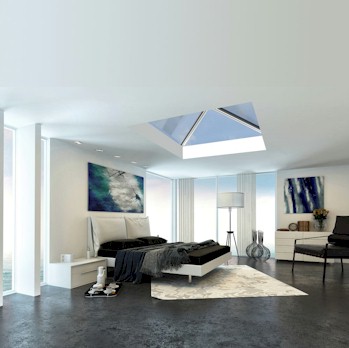

Whether it is for a living room, dining room, kitchen, bedroom or bathroom the UltraSky rlantern will be the perfect stylish solution for you. The UltraSky lantern is stunning, enhancing any style of property, traditional or modern alike. It reduces the need for a chunky roof ridge and maximises the amount of glass that allows light to flood into your room.
SIZES. The UltraSky lantern roof is available in a number of bespoke rectangular sizes ranging from 1000mm x 1500mm to 4000m x 5850m.

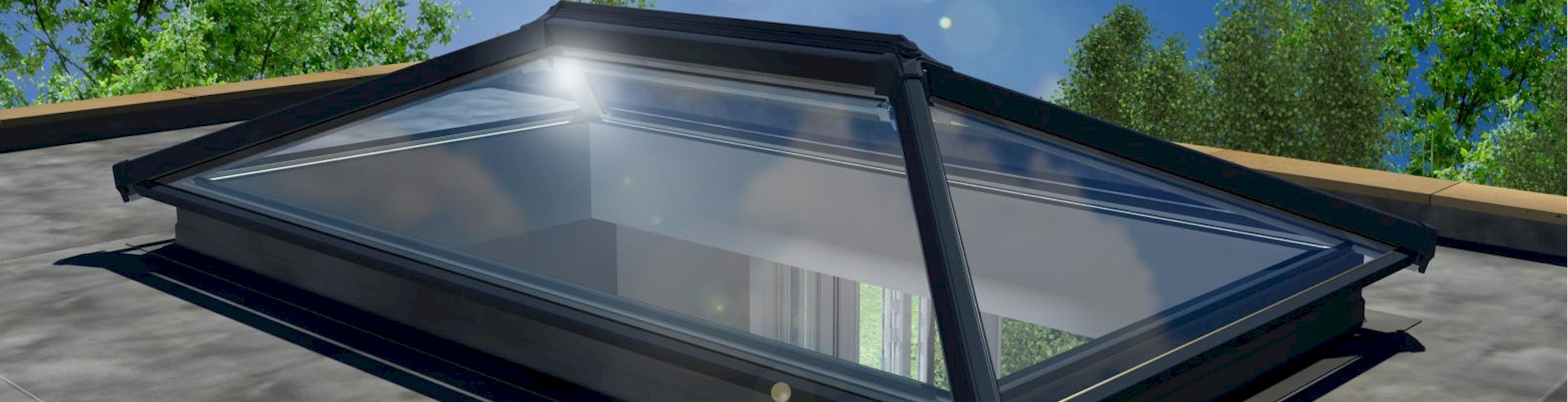

COLOUR OPTIONS. Choose the stylish White PVC option to match your modern window frames, or for that extra Wow factor go for the Aluminium option, available in White, Anthracite Grey or Satin Black. Internally the lantern roof is clad in white PVC or upgraded to anthracite grey or satin black to either match or contrast the external finish.
GLAZING. The highly thermally efficient glazing options will help reduce heat loss and noise pollution, whilst letting the desired amount of light into your room.
EXTRAS. Add a roof vent to let in the fresh air. Roof vents are available with a manual opener, automatic opener or an automatic opener with rain and temperature control. * (roof vents only available in selected sizes).
KEY PERFORMANCE CRITERIA. Rectangular double ended rooflights, with a width from 1000-4000*mm and a length from 1500-5850*mm.
UltraSky Lantern has a thermally broken aluminium ridge body.
25 degree fixed pitch to all four sides.
Glazing bar top caps in either chambered PVC (white only) or Aluminium (White RAL 9003 80% gloss, Anthracite Grey RAL 7016 30% gloss and Satin Black RAL 9005 60% gloss).
Internal Claddings in PVC or Aluminium available in White, Grey or Black
Internal Aluminium claddings are factory filled with insulation further enhancing thermal performance
Low profile eaves beam (no gutter) designed to be fitted with oversailing 24mm double glazed units (high performance low e, self cleaning and solar control in blue or neutral/clear - units can be supplied with the rooflight).
UltraSky Lantern is designed around maximum uninterrupted sight lines, bar numbers are reduced (or can be added if you prefer) and the ridge board and hub ends are as unobtrusive as possible.
The thermal performance has been optimised to make it suitable for extensions in domestic properties. Typical U value with 1.1 glass for a 1000mm wide x 2000mm long rooflight is 1.4 W/m2K.
*Width and length are defined as to the external face of the timber kerb (not supplied, recommended to be 150mm high x minimum of 70mm wide).
The UltraSky lantern is the perfect solution for a new build traditional Orangery, extension or can be inserted into an existing flat roof to help give you the feeling of light and space.
