Description:

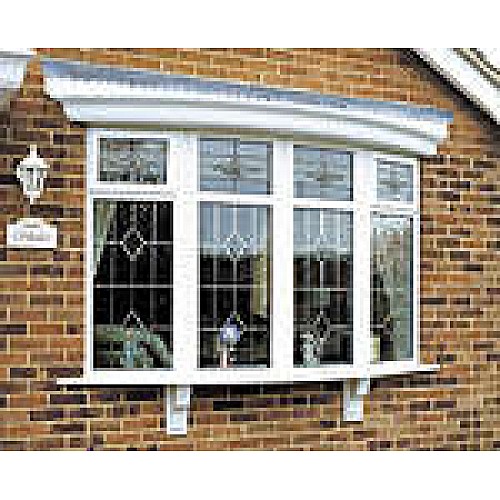

The bow canopy provides an easy and convenient way of converting a flat window into a bow window.
The maintenance-free self-coloured GRP compliments the advantages of PVCU windows and represents an attractive & cost-effective alternative to fabricating a canopy on site. All Bow Canopies come with the optional extra foam filling for insulation & soundproofing properties.
Dimensions:
2.4m Bow canopy made from GRP
Overall Size 2830mm
Max Opening 2500mm
Min Opening 1900mm
Projection at centre 310mm
standard Bow Canopy Specifications
| MODEL | DIMENSIONS | PROJECTION | ||||||
| SIZE | A | B | C | 1D | 2D | E | F | H |
| 1800 Canopy | 250 | 2360 | 300 | 1900 | 1500 | 256 | 200 | 175mm |
| 2400 Canopy | 300 | 2830 | 300 | 2500 | 1900 | 390 | 250 | 310mm |
| 2800 Canopy | 310 | 3150 | 300 | 2800 | 2500 | 460 | 260 | 360mm |
| 3400 Canopy | 330 | 3730 | 300 | 3400 | 2800 | 590 | 280 | 490mm |
Manufactured in strong rigid G.R.P. this beautifully designed bow canopy is available for any size opening between 1200mm and 3500mm.
It is available in three shades of
White; also Brown and Light Oak.
Special colours by request.
Fitting time is cut to a minimum and can be undertaken by any installer. Lead worktops and plastered ceilings etc. are eliminated. There is no need for specialist contractors to finish the job.
Optional GRP simulated lead
flashing is now available.
Full Soffit forms the internal ceiling.
Foam-filled cavity is optional.
