Timber Supported Polycarbonate Roof Kit – 2.28m Coverage

Select the type and colour of polycarbonate required when ordering.

Our 2.28m Timber Supported Polycarbonate Roof Kit is a compact roofing solution for smaller timber structures, including lean-to roofs, porches, canopies, covered walkways and garden projects. The kit combines polycarbonate sheets with the essential timber fixing bars, edge fillets, sheet closures, flashing and anti-dust tapes.

Supplied from Bristol, it is a practical option for DIY customers, builders and installers looking for a straightforward polycarbonate roofing system.

What's Included

• 2 x 1050mm x 2.5m polycarbonate roof sheets
• 3 x 2.5m bars for fixing to timber
• 2 x 3m edge fillets
• 2 x 1050mm sheet closures
• 1 x 150mm flash band
• Anti-dust tapes

Installation Guide

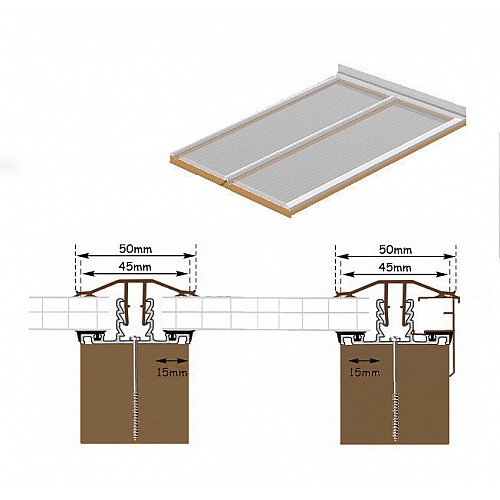

Step 1 – Fit the Edge Bars

Fix the first edge bar into position and slide the edge fillet into the groove. Cut the bar to length, allowing for a 50mm overhang into the guttering. Cut the aluminium base approximately 2mm longer than the polycarbonate sheet to allow for the end cap.

Secure the bar using No. 6 screws at approximately 300–400mm centres, ensuring the drip on the edge trim is correctly positioned. Repeat at the opposite end.

Note: Where the bar butts against a wall, the edge fillet is not required; fit the bar only.

Step 2 – Position the Centre Bar

Position the remaining centre bar according to your chosen sheet layout and fix it using screws at approximately 300–400mm centres.

IMPORTANT: Leave a clear 4mm expansion gap between the bars and the polycarbonate sheets.

Step 3 – Check the Gaskets

Ensure all rubber gaskets in the bars are flat and correctly positioned with no bumps or raised sections.

Step 4 – Prepare and Fit the Polycarbonate

Cut the polycarbonate sheets to length if required and remove all swarf using a vacuum or condensation-free air line. Never try to wash swarf out of the sheet channels.

Fit the anti-dust tapes correctly, using the solid foil tape at the top and the vented tape at the bottom. These tapes help reduce condensation and prevent insects and dust entering the sheet channels.

Peel approximately 50mm of protective film from both sides of the sheet and carefully position it into place.

Step 5 – Fit the PVCU Caps

Position the PVCU caps so that the toothed legs locate inside the aluminium base. Press down firmly and lightly tap into position with a rubber mallet until the caps lock securely.

Complete the flashing as you work across the roof. Once the caps and flashing are fitted, remove the remaining protective covering.

Step 6 – Finish the Roof

Fit the end caps into position and cut the sheet closures to the required length between the bars. Push the closures securely into place.

Helpful Installation Tips

Polycarbonate cut to size: If you require polycarbonate cut to size, fit your bars first and then order the sheets. We can cut, blow and tape the polycarbonate to the required width and length. Remember to allow for thermal expansion. Price on application.

Lead flashing: If using lead flashing, fit it before the sheets and dress it down as the roof panels are installed. Fit lead in sections of approximately 2m and seal 100mm overlaps with Lead Mate.

Cleaning: Use mild soapy water to clean polycarbonate. Test a small area first and never use solvent-based cleaners.

Silicone: Silicone should not normally be required. If necessary, use a good-quality low-modulus neutral clear silicone.

Recommended sheet widths: For a good-quality roof, avoid excessively wide sheets. Use recommended widths of approximately 980mm or less for roofs up to 4m long and 700mm wide for roofs over 4m long.

Timber structure: Fix wall plates at the top and bottom and install the joists as you fit the polycarbonate bars.

Finishing: For a low-maintenance finish, use 9mm economy fascia around the roof with square white guttering.

Polycarbonate Roofing Kits Bristol

We supply timber supported polycarbonate roofing kits from Bristol to DIY customers, builders and professional installers. This compact 2.28m kit is ideal where you need a smaller roofing package without having to source the individual components separately.

Not sure which polycarbonate or roofing kit you need? Contact us before ordering and we'll be happy to help.
