High Performance Aluminium Canopy System

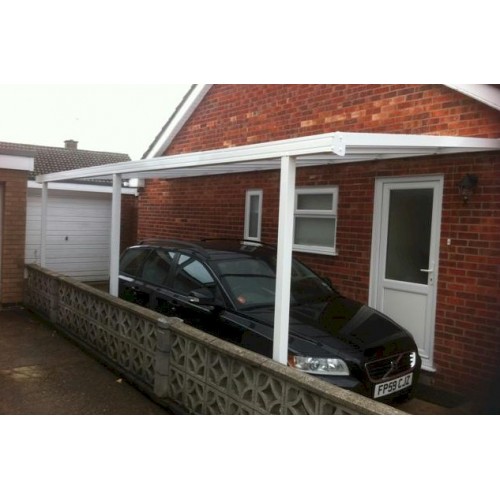

Our High Performance Aluminium Canopy System combines modern design, clean sight lines and high structural performance. Designed for domestic, DIY and commercial applications, the system provides a versatile solution for car ports, patio canopies, porches, covered seating areas, caravan shelters, cycle shelters, smoking shelters and walkway covers.

High Performance Canopy Features

• Maintenance-free construction: Powder-coated all-aluminium construction
• Integral drainage: The eaves beam doubles as a box gutter, with drainage through the supporting posts
• 16mm polycarbonate roofing: Triple-wall UV-stabilised polycarbonate available in clear, bronze or opal
• Complete kits: Supplied with all fixings and sealants required for installation
• Flexible roof pitches: Choose from 5°, 10° or 15°
• Bespoke sizes: Canopies can be supplied in bespoke sizes and configurations
• Colour options: White as standard, with most RAL colours available by quotation

Canopy Posts & Widths

The standard canopy post height is 2.25m.

• 2.5m and 3m widths: 2 posts
• 3.5m to 6m widths: 3 posts
• 7m width: 4 posts

Technical Information

• Wall plate: 125mm high x 70mm wide
• Eaves beam: 115mm high x 80mm wide
• Edge bars: 80mm high x 30mm wide
• Main bars: 60mm high + 3mm top cap x 50mm wide
• Posts: 75mm x 75mm

16mm Triple-Wall Polycarbonate Canopy Roofing

The canopy is glazed with 16mm triple-wall UV-stabilised polycarbonate sheeting, available in clear, bronze or opal. The roofing provides flexibility in canopy design together with enhanced strength and rigidity.

Integrated Canopy Guttering & Drainage

The eaves beam doubles as an integral box gutter, with the supporting posts used as downpipes. Rainwater exits through the variable-height post feet, providing an integrated drainage solution.

Canopy Roof Pitch

Select a roof pitch of 5°, 10° or 15° when ordering. On standard modular kits, the maximum projection is achieved at a 5° pitch.

Please note: The 3.6m projection refers to the length of the roof slope. The horizontal projection will therefore vary depending on the selected roof pitch.

Bespoke Aluminium Canopies

The system can be supplied in modular kit format or as bespoke sizes and configurations. In addition to the standard lean-to configuration, the system can be specified as a gable roof design with the wall plates bolted back to back to form a ridge supported between two host walls, or as a free-standing option supported on posts.

For specific non-standard projections or bespoke requirements, please contact us for technical support.

Fast Canopy Lead Time

The standard canopy range is available on a five working day lead time.

Canopy Installation

The kits are supplied with all fixings and sealants required for a standard installation and include a comprehensive fitting guide.
