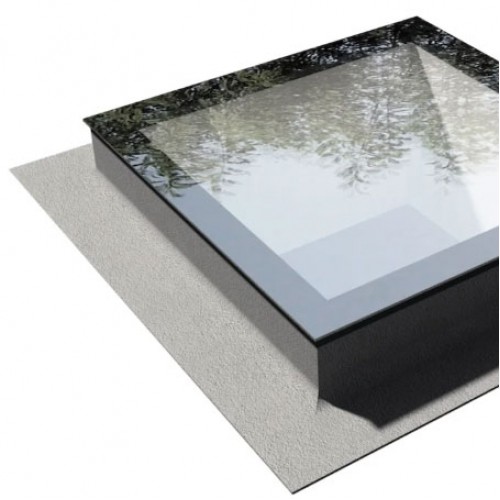

TuffX Frameless Flat Rooflight 1000 x 1500mm

The TuffX Frameless Flat Rooflight 1000 x 1500mm combines high-performance glazing with a modern minimalist design, creating a clean external glass finish with no visible external frame. Manufactured using advanced glass-bonding technology, the unit offers thermal efficiency, durability and weather resistance, making it suitable for modern extensions, kitchen renovations and flat-roof installations.

The frameless external design allows rainwater to run freely from the glass surface while maintaining a low-profile appearance. Internally, the slimline structure provides support while maximising the glazed viewing area.

The supplied insulated kerb simplifies installation and provides a 150mm upstand above roof level, helping with positioning, weatherproofing and drainage.

For optimal water run-off, the frameless rooflight requires a minimum roof pitch of 5°.

TuffX Frameless Rooflight 1000 x 1500mm

• Rooflight size: 1000mm x 1500mm
• Minimum roof opening: 1000mm x 1500mm
• External kerb size: 1660mm x 1660mm
• Kerb height: 150mm
• Glazing: Double-glazed high-performance safety glass
• Glass centre pane U-value: Approx. 1.2 W/m²K
• Minimum roof pitch: 5°
• External finish: Frameless clear glass edge design

Frameless Flat Rooflight Design

The frameless glass edge creates a clean, contemporary appearance with no visible external frame. The larger 1000 x 1500mm format provides a generous glazed area for projects where increased natural light is required.

Applications

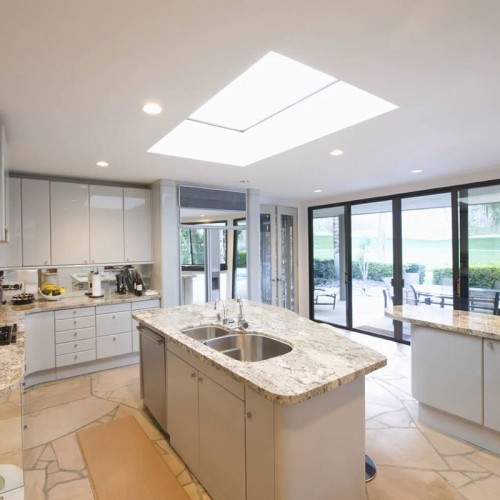

The TuffX 1000 x 1500mm frameless flat rooflight is suitable for modern flat-roof installations, including extensions, kitchen renovations and replacement rooflight projects.
