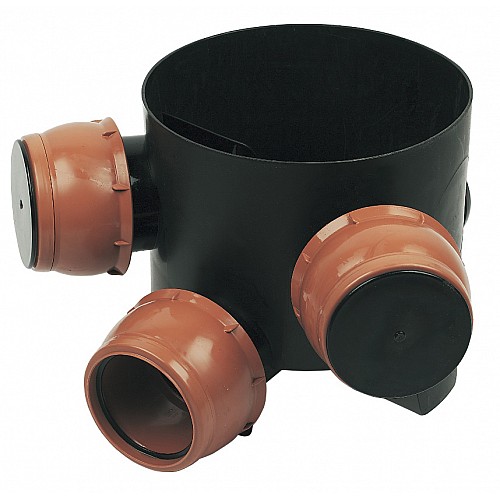

D801 Mini Access Chamber 300mm with 110mm Inlets

The D801 Mini Access Chamber is a 300mm diameter chamber designed for use in underground drainage systems. It features three flexible 110mm inlets, each allowing up to 20° of movement in any direction to help accommodate pipe alignment during installation.

D801 Mini Access Chamber Features

• Product Code: D801
• Diameter: 300mm
• Chamber Depth: 270mm
• Inlets: 3 x flexible 110mm inlets
• Inlet Movement: Up to 20° in any direction
• Blanking Plugs: 2 supplied
• Maximum Height: 600mm with risers
• Material: PVCu
• Joints: Ring seal joints
• Application: Gravity drainage and sewerage systems

300mm Mini Access Chamber

The 300mm Mini Access Chamber provides access to underground drainage systems for inspection and maintenance. Its flexible 110mm inlets allow pipe connections to accommodate up to 20° of movement in any direction.

Flexible 110mm Drainage Inlets

The three flexible 110mm inlets provide greater flexibility when connecting pipework where alignment is not perfectly straight. Two blanking plugs are supplied for unused inlets.

D801 Chamber Risers

The D801 chamber has a 270mm deep base and can be extended using 100mm and 200mm risers, giving a maximum stated height of 600mm. Chamber risers, cover and frame are sold separately.

Gravity Drainage and Sewerage

The D801 Mini Access Chamber is suitable for gravity drainage and sewerage systems and can be used in residential and light commercial drainage installations where access for inspection and maintenance is required.

The supplied product information states that the chamber is suitable for installation up to 10m deep.
