Rainwater Diverter for 50mm Minflo Downpipe

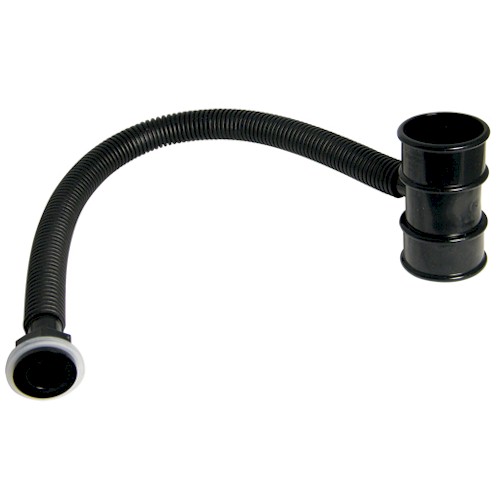

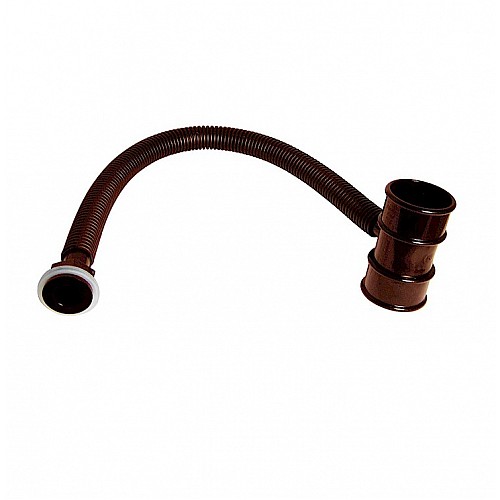

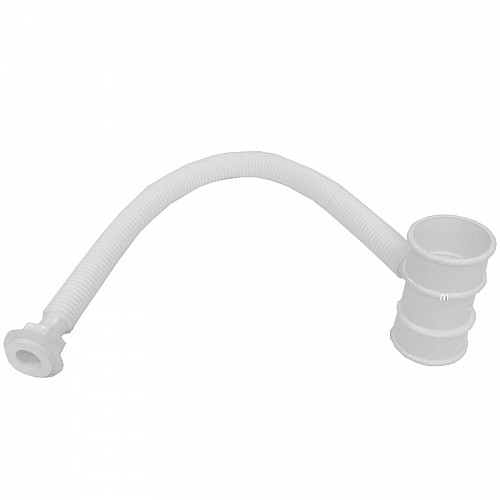

The Rainwater Diverter is designed to divert rainwater from a 50mm Minflo Round Downpipe into a water butt for use in the garden. Available in white, black and brown, it provides a practical way to collect rainwater from your rainwater system.

Rainwater Diverter Features

• Application: Diverts rainwater from the downpipe to a water butt
• Downpipe Compatibility: 50mm Minflo Round Downpipe
• Colours: White, Black and Brown
• Maximum Water Butt Distance: 500mm from the rainwater downpipe

Rainwater Diverter Installation

1. Position the water butt a maximum of 500mm from the rainwater downpipe.
2. Cut a 26mm circular hole 100mm from the top of the water butt.
3. Taking a level line from the bottom of the hole, mark the pipe 8mm below this line. Then mark the pipe 30mm above that line, creating a 38mm gap.
4. Cut the pipe at both marks and manoeuvre the pipe to fit the diverter. Install with the arrow pointing downwards. A pipe clip may be required underneath the diverter for additional support.
5. Fit the tank connector to the water butt and extend the flexible hose to connect the diverter to the water butt.

Collect Rainwater for Garden Use

The diverter provides a straightforward connection between the 50mm Minflo Round Downpipe and a water butt, allowing collected rainwater to be diverted for use in the garden.
