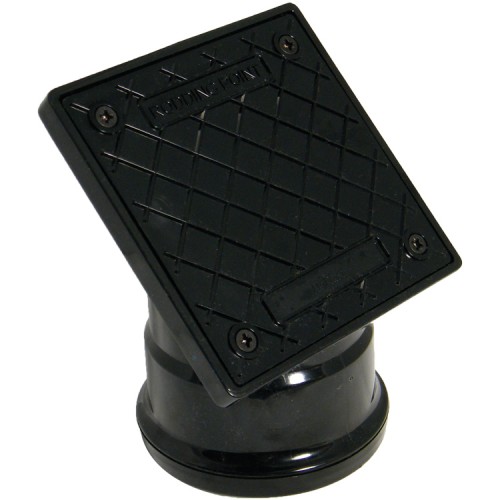

PVC Square Rodding Point D884 45°

The D884 PVC Square Rodding Point is an underground rodding eye designed to provide access to drainage and rainwater systems for cleaning and maintenance. This 45° socketed rodding point features a sealed access cover and is suitable for installation at depths of up to 10m.

D884 Square Rodding Point Features

• Product Code: D884
• Type: Square rodding point / rodding eye
• Angle: 45°
• Connection: Socketed
• Pipe Size: 110mm
• Material: PVCu
• Access Cover: Sealed and airtight
• Load Capacity: Up to 10kN (1 tonne) when supported by a concrete plinth
• Installation Depth: Up to 10m

45° PVC Square Rodding Eye

The 45° square rodding point provides convenient access to underground pipework for cleaning and maintenance. The sealed access cover helps prevent debris and contaminants from entering the drainage system.

Dimensions and Weight

• Height: 205mm
• Width: 165mm
• Depth: 145mm
• Weight: 0.7kg

Socketed Connection

The socketed design provides a secure connection to compatible 110mm PVCu pipework, making the D884 suitable for underground drainage and rainwater systems.

Applications

• Underground drainage systems
• Rainwater drainage systems
• Gravity drainage and sewerage systems
• Drainage cleaning and maintenance access
• Installations requiring a 45° rodding eye

When supported by a concrete plinth, the rodding point can withstand loads of up to 10kN (1 tonne).
