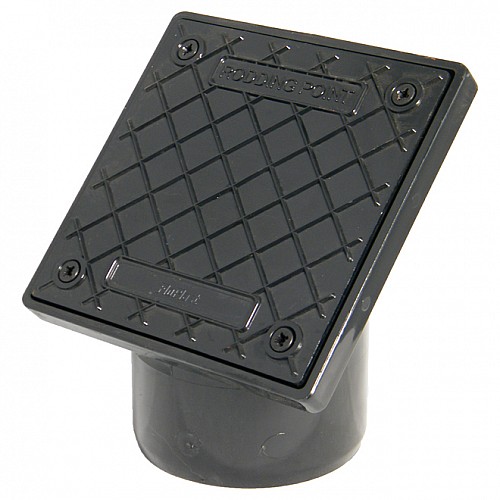

PVC Square Rodding Point Spigot D883 45°

The D883 PVC Square Rodding Point (Spigot) is designed to provide access to underground drainage and rainwater systems for cleaning and maintenance. This 45° spigot-style rodding point features a sealed access cover to help prevent debris from entering the drainage system.

D883 Square Rodding Point Features

• Product Code: D883
• Type: Square rodding point with spigot connection
• Angle: 45°
• Access Cover: Sealed access cover
• Material: PVCu
• Load Capacity: Up to 10kN (1 tonne) when supported by a concrete plinth
• Installation Depth: Suitable for depths up to 10m

45° PVC Square Rodding Point

The 45° square rodding point provides convenient access to drainage pipework for rodding, cleaning and maintenance. The sealed access cover helps protect the drainage system from debris.

Dimensions and Weight

• Height: 205mm
• Width: 165mm
• Depth: 145mm
• Weight: 0.7kg

Spigot Connection

The spigot-style design provides a straightforward connection with compatible PVC pipes, making the D883 suitable for underground drainage and rainwater systems.

Applications

• Underground drainage systems
• Rainwater drainage systems
• Gravity drainage systems
• Drainage access for cleaning and rodding
• Areas requiring additional load capacity when supported by concrete

When supported by a concrete plinth, the rodding point can withstand loads of up to 10kN (1 tonne).
