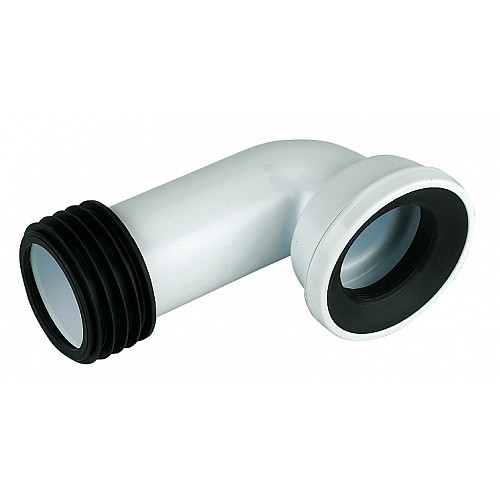

SP103 90° WC Pan Connector

The SP103 90° WC Pan Connector provides a reliable connection between a WC toilet pan and soil pipe system. The integral sealing diaphragm allows up to 5° of misalignment in any direction, providing flexibility during installation.

The 90° angle design is intended for WC toilet connections, providing a direct connection to the soil pipe. Manufactured from durable PVC-U, the connector is designed for long-lasting performance and is suitable for high-temperature waste discharges.

SP103 90° WC Pan Connector Features

• Product Code: SP103
• Angle: 90°
• Misalignment: Up to 5° in any direction
• Material: PVC-U
• Sealing: Integral sealing diaphragm
• Application: WC pan to soil pipe connection
• Heat Resistance: Suitable for high-temperature waste discharges

Flexible 90° WC Pan Connector

The integral sealing diaphragm allows the SP103 pan connector to accommodate up to 5° of misalignment in any direction, helping provide a secure connection where exact alignment is difficult during installation.

PVC-U WC Pan Connector

The durable PVC-U construction provides a strong and reliable connection for WC toilet installations. The 90° design provides a direct route between the toilet pan and soil pipe system.

Applications

• WC toilet pan connections
• Soil pipe systems
• Residential plumbing installations
• Commercial plumbing installations
