PetSafe Microchip Cat Flap

The PetSafe® Microchip Cat Flap provides secure, selective access for your cat while helping to keep unwanted animals out of your home. Using your cat's unique 15-digit FDX-B microchip, the flap identifies registered pets without requiring a collar or external access device.

With capacity for up to 40 microchipped cats, it is an excellent choice for multi-cat households. The combination of microchip recognition, automatic locking and a manual 4-way lock gives you convenient control over your pets' access.

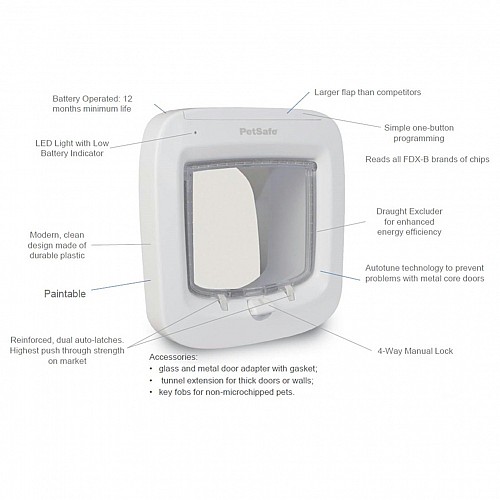

Key Features

• Microchip Activated – Reads your cat's unique 15-digit FDX-B microchip.
• No Collar Required – Uses your cat's existing microchip for identification.
• Stores Up to 40 Cats – Ideal for multi-cat households.
• Automatic Security Lock – Helps prevent unwanted animals entering your home.
• 4-Way Manual Lock – Provides additional control over entry and exit.
• Battery Powered – No mains electrical connection required.
• Low Battery Indicator – Provides a warning when the batteries need replacing.
• Draught Excluder – Helps reduce unwanted airflow around the flap.
• Multiple Installation Options – Suitable for doors, walls and glass installations.

Selective Microchip Entry

The PetSafe Microchip Cat Flap reads the FDX-B 15-digit microchip already implanted in your cat. Once your cat's microchip has been programmed into the flap, access is restricted to registered pets.

Up to 40 individual microchip IDs can be stored, making this cat flap particularly useful for households with several cats.

4-Way Locking System

In addition to automatic microchip-controlled access, the PetSafe Microchip Cat Flap features a manual 4-way locking system:

• Open – Allows free entry and exit.
• Locked – Prevents entry and exit.
• In Only – Allows cats to enter but prevents them leaving.
• Out Only – Allows cats to leave but prevents re-entry.

Suitable For

• Microchipped cats.
• Multi-cat households.
• Cats weighing up to 8kg (17.6lb).
• Cats with a maximum shoulder width of 150mm (5.9").
• Homes requiring controlled pet access.

Installation Options

The PetSafe Microchip Cat Flap can be installed into a variety of suitable building materials.

• Wooden Doors – Suitable.
• uPVC/PVC Doors – Suitable.
• Metal Doors – Suitable.
• Brick Walls – Suitable with the appropriate installation method.
• Single Glazing – Suitable with the correct aperture.
• Double Glazing – Requires a new glass unit manufactured with the required aperture.

Glass Installation

For installation into glass, the required 212mm diameter aperture should be incorporated when the glass unit is manufactured.

Existing toughened or sealed double-glazed units cannot normally be cut after manufacture, so a new glass unit will generally be required for these installations.

PetSafe Microchip Cat Flap Supply and Installation Bristol

Master Plastics supplies PetSafe cat flaps and microchip pet doors from our Bristol premises. We offer nationwide supply and can also arrange professional cat flap installation throughout Bristol and the surrounding areas.

Whether you need a microchip cat flap installed into a uPVC door, composite or timber door, wall or new glass unit, we can help you choose a suitable solution and arrange installation where required.

Dimensions

• Overall Size: 232mm x 232mm (9.1" x 9.1")
• Door Cut-Out: 175mm x 168mm (6.9" x 6.6")
• Glass Cut-Out: 212mm Diameter (8.3")
• Tunnel Depth: 72mm (2.8")

Product Specifications

• Manufacturer: PetSafe®
• Product Type: Microchip Cat Flap
• Microchip Compatibility: FDX-B 15-Digit Microchips
• Maximum Stored Microchips: 40
• Locking System: Automatic Microchip Locking with 4-Way Manual Lock
• Power: Replaceable Batteries
• Low Battery Indicator: Yes
• Maximum Cat Weight: 8kg (17.6lb)
• Maximum Shoulder Width: 150mm (5.9")
• Tunnel Depth: 72mm
• Suitable For: Cats

The PetSafe® Microchip Cat Flap combines secure microchip-controlled access with flexible manual locking and multiple installation options. With capacity for up to 40 registered cats, it is a practical choice for multi-cat homes and customers looking for reliable protection against unwanted animals.
