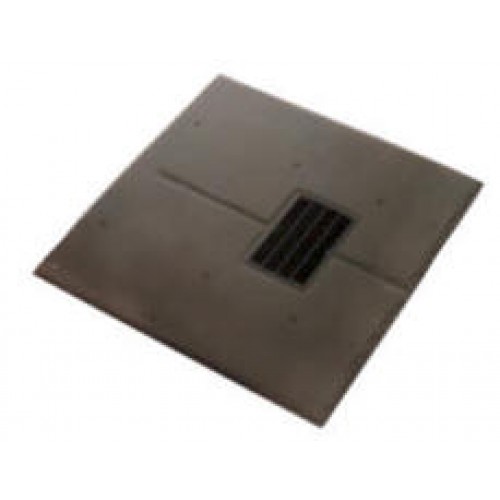

Roofline Slate Vent 600mm x 300mm - 10,000mm²

The Roofline Slate Vent 600mm x 300mm provides an efficient and discreet ventilation solution for slate roofs. Designed to integrate into the roof covering without disrupting its appearance, the vent is compatible with all slate sizes and avoids the need to cut the upslope slates.

The vent provides a full 10,000mm² ventilation capacity to promote airflow through the roof space. A standard 110mm diameter spigot is included for pipe termination, with the option to cut back to suit the full ventilation area. An optional pipe terminal can provide either 110mm or 125mm connections.

Roofline Slate Vent Specifications

• Product: Roofline Slate Vent
• Size: 600mm x 300mm
• Ventilation Capacity: 10,000mm²
• Spigot: 110mm diameter
• Optional Pipe Terminal: 110mm or 125mm connections
• Application: Slate roofs

Discreet Slate Roof Ventilation

The 600mm x 300mm slate vent is designed to remain virtually invisible from ground level, helping maintain the appearance of the slate roof. Its design also eliminates the need for cutting upslope slates, helping simplify installation.

Key Features

• 600mm x 300mm Slate Roof Vent
• 10,000mm² Ventilation Capacity
• Compatible with All Slate Sizes
• No Cutting of Upslope Slates Required
• Discreet Design
• 110mm Diameter Spigot Included
• Optional 110mm or 125mm Pipe Terminal
• Integrated Water Collection Box

Water Collection and Drainage

A collection box beneath the vent is designed to collect water that enters the vent and channel it back onto the roof. This helps manage water ingress around the ventilation opening while maintaining the roof's ventilation function.

Slate Roof Ventilation

With a 10,000mm² ventilation capacity, the Roofline Slate Vent provides effective airflow for suitable slate roof applications. The included 110mm diameter spigot provides a standard pipe termination, while the optional pipe terminal offers additional connection flexibility.

Slate Roof Vents Bristol & Surrounding Areas

Master Plastics supplies roof ventilation products in Bristol and the surrounding areas for trade, DIY and roofing projects. The Roofline Slate Vent 600mm x 300mm provides a discreet ventilation solution for compatible slate roof installations.
