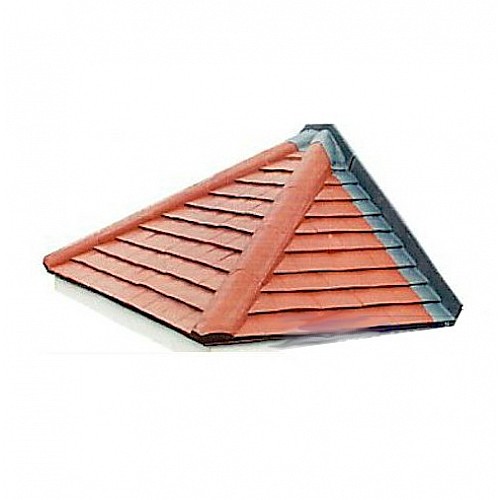

Suffolk GRP Over Door Canopy

The Suffolk Over Door Canopy features a traditional tile effect hip-roof design with a lightly textured fascia and soffit. Manufactured from strong, rigid GRP, it provides an attractive and durable way to add shelter and enhance a doorway.

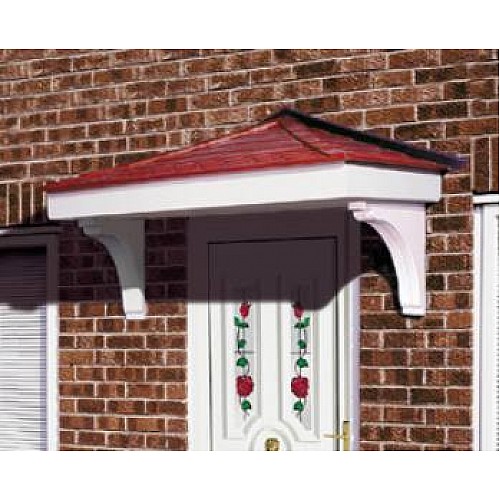

Designed for straightforward installation, the Suffolk canopy can be mounted above a door opening and is also suitable for mounting above frames where it is being used as a porch. The canopy shown is mounted on BRG12 brackets.

Key Features

• Traditional Hip-Roof Design: Tile effect roof with a classic appearance.
• Lightly Textured Finish: Textured fascia and soffit complement the traditional styling.
• Strong GRP Construction: Manufactured from rigid Glass Reinforced Plastic.
• Tile Colour: Terracotta.
• Base Colours: White or Brown.
• Versatile Installation: Suitable above doorways and can also be used above frames as a porch.
• BRG12 Brackets: The canopy can be mounted using BRG12 brackets.
• Fitting Kit Included: Supplied with a fitting kit and instructions.
• Low Maintenance: Requires only occasional cleaning with warm, soapy water.

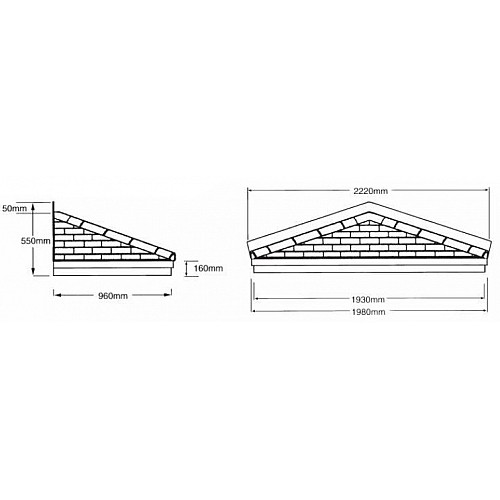

Suffolk Canopy Dimensions

• Projection: 960mm
• External Size: 2.2m
• External Frame Width: 1930mm
• Total Height: 600mm

The size ordered is the total external size of the canopy.

Colours

• Tile Effect: Terracotta
• Base: White or Brown

Important Information

GRP products are made to order and non-returnable. Please ensure your measurements are correct and that you have selected the appropriate product for your requirements before ordering.

Fitting Instructions

1. Find the centre of the door opening and measure out the position for the support brackets. This can vary provided they fit under the base ends.
2. Fix the brackets level to the wall using the supplied plugs, screws and cover caps.
3. Position the canopy onto the brackets and centralise it with the door opening.
4. Drill the upstand at 300mm centres and plug and screw it to the wall using screws and cover caps. Fix the end of each bracket into the tray.
5. Clean off any dust or dirt and seal using a suitable silicone sealant.
6. The installation is now complete.

The Suffolk canopy requires only occasional washing with warm, soapy water to maintain its appearance.

Do not use abrasive or solvent cleaners on this product.

Suffolk Specification Sheet

Download the Suffolk Specification Sheet

Suffolk Fitting Guide

Download the Suffolk Fitting Guide
