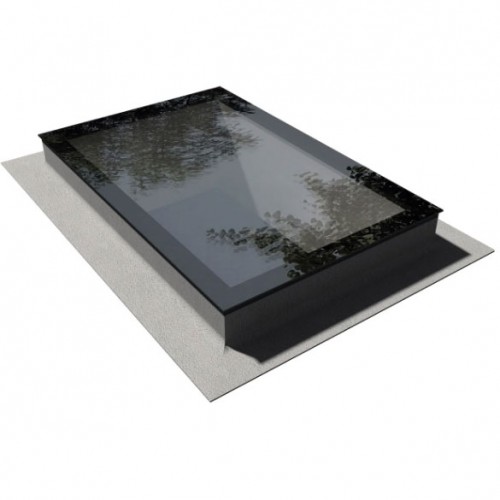

TuffX Frameless Flat Rooflight 600 x 900mm

The TuffX Frameless Flat Rooflight 600 x 900mm combines high-performance glazing with a modern minimalist design, creating a clean external glass finish with no visible external frame. Manufactured using advanced glass-bonding technology, the unit offers thermal efficiency, durability and weather resistance for modern extensions, kitchen renovations and flat-roof installations.

The frameless external design allows rainwater to run freely from the glass surface while maintaining a low-profile appearance. Internally, the slimline structure maximises the glazed viewing area.

The supplied insulated kerb simplifies installation and provides a 150mm upstand above roof level. For optimal water run-off, the rooflight requires a minimum roof pitch of 5°.

TuffX Frameless Rooflight 600 x 900mm

• Rooflight size: 600mm x 900mm
• Minimum roof opening: 600mm x 900mm
• External kerb size: 760mm x 1060mm
• Kerb height: 150mm
• Glazing: Double-glazed high-performance safety glass
• Glass centre pane U-value: Approx. 1.2 W/m²K
• Minimum roof pitch: 5°
• External finish: Frameless clear glass edge design

Frameless Flat Rooflight Design

The frameless glass edge provides a clean, contemporary appearance while allowing natural light into the building below. The larger 600 x 900mm format is suited to projects requiring a rectangular rooflight opening.

Applications

The TuffX 600 x 900mm frameless flat rooflight is suitable for modern flat-roof installations, including extensions, kitchen renovations and replacement rooflight projects.

Technical Specification
