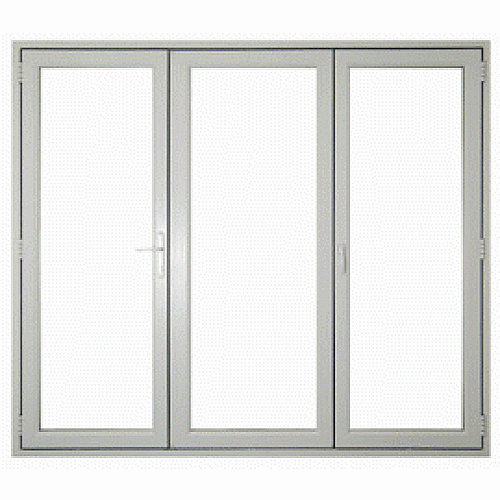

Made-to-Measure UPVC Bi-Fold 3 Pane Folding Sliding Door with 1 Fixed Panel - 'A' Rated, 5-Point Locking System
- Brand: Master Plastics
- Product Code: BIFOLD321
- Availability: In Stock
Made-to-Measure 3 Pane uPVC Bi-Fold Door with Fixed Panel
Our made-to-measure 3 pane uPVC bi-fold folding sliding door with 1 fixed panel combines a wide opening with practical fixed glazing, creating a bright connection between your home and outdoor space. Designed for openings from 1500mm to 3000mm wide and up to 2200mm high, the door offers flexible configuration, energy-efficient glazing and secure locking.
3 Pane uPVC Bi-Fold Door Features
- Made to measure: Suitable for openings from 1500mm to 3000mm wide
- Maximum height: 2200mm
- Configuration: 2 bi-folding panels with 1 fixed panel
- Glazing: 28mm 4-20-4 clear Low-E toughened argon-filled A-rated glass
- Security: 5-point locking system
- Fixed door positioning: Choose left or right-hand configuration
- Folding direction: Internal or external folding options
- Standard furniture: White
- Furniture upgrades: Black, Chrome or Brass
- Standard frame colour: White
- Frame upgrades: Golden Oak or Rosewood
- RAL colours: Available on request; please call for pricing and availability
- Threshold: Standard threshold included
- Low threshold: Optional Low Aluminium Threshold
A-Rated uPVC Bi-Fold Door with Fixed Panel
The door is supplied with 28mm 4-20-4 clear Low-E toughened argon-filled A-rated glass. The glazing specification combines Low-E glass, argon filling and a warm-edge spacer bar to provide an energy-efficient glazing system.
Flexible Bi-Fold Door Configuration
The 3 pane bi-fold door with fixed panel has two folding panels and one fixed panel. The fixed panel can be configured to the left or right, while the folding arrangement can be selected for internal or external operation to suit the installation.
uPVC Bi-Fold Door Colours and Hardware
White is supplied as the standard frame colour, with Golden Oak and Rosewood available as upgrades. RAL colours are also available on request; please contact us for pricing and availability.
White furniture is supplied as standard, with optional Black, Chrome or Brass hardware finishes available.
Bi-Fold Door Threshold Options
A standard threshold is included, with an optional Low Aluminium Threshold available for a more seamless entrance.
Made-to-Measure 3 Pane Folding Sliding Door
Manufactured to your specified requirements, this 3 pane uPVC bi-fold folding sliding door with 1 fixed panel offers flexible sizing and configuration options for a wide range of home improvement projects.
For assistance with your requirements or to discuss your order, please call 0117 971 9922.
Installation Guide: Bi-Fold Door Installation Guide
| Dimension | |
|---|---|
| Minimum Panel Width (mm) | 500mm |
| Maximum Panel Width (mm) | 1000mm |
| Minimum overall width (mm) | 1620mm |
| Maximum overall width (mm) | 3120mm |
| Minimum Overall Height (mm) | 2070mm |
| Maximum Overall Height (mm) | 2320mm |
| Design | |
| Opening Options | Single door on left or right hand side |
| Folding Options | folding internally or externally |
| Door Furniture colour options | White, Black, Chrome or Brass |
| Frame Colour Options | White, Golden Oak, Rosewood |
| Threshold Options | Standard, or Low |
