Made-to-Measure UPVC 5 Pane Bi-Fold Folding Door – Custom Sizes, A-Rated, Secure & Modern Design
- Brand: Master Plastics
- Product Code: BIFOLD550
- Availability: In Stock
Made-to-Measure 5 Pane uPVC Bi-Fold Folding Door
Our made-to-measure 5 pane uPVC bi-fold folding sliding door provides a contemporary way to create a wide, open connection between your home and outside space. Designed as a one-fold unit without a main opening sash, it offers a clean appearance while providing flexibility for larger openings.
With a 70mm sculptured profile, A-rated glazing and a 5-point locking system, this bi-fold door combines energy efficiency, security and modern styling. It is available for openings from 2620mm to 5120mm wide, with a maximum height of 2320mm.
5 Pane uPVC Bi-Fold Door Features
- Made to measure: Suitable for openings from 2620mm to 5120mm wide
- Maximum height: 2320mm
- Configuration: Five panels in a single folding unit
- Profile: 70mm sculptured profile
- Glazing: 28mm 4-20-4 clear Low-E toughened argon-filled glass
- Warm edge spacer bar: Included
- Energy rating: A-rated glazing
- Security: 5-point locking system
- Hinge position: Left or right when viewed from outside
- Folding: Internal or external folding options
- Door furniture: White as standard, with Black, Chrome or Brass upgrades
- Frame colour: White as standard
- Frame colour upgrades: Golden Oak or Rosewood
- RAL colours: Available on request
- Threshold: Standard threshold supplied, with optional Low Aluminium Threshold

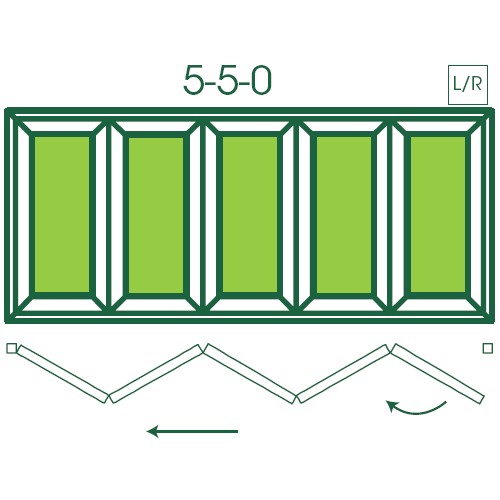

One-Fold 5 Pane Bi-Fold Door
The one-fold five-panel design is supplied without a main opening sash, creating a clean and contemporary appearance. The folding direction can be selected to suit the available space, with options for internal or external folding.
A-Rated Low-E Glazing
The door is supplied with 28mm 4-20-4 clear Low-E toughened argon-filled glass and a warm edge spacer bar. The glazing is A-rated and provides an energy-efficient option for your home.
uPVC Bi-Fold Door Colours and Hardware
The standard frame colour is white, with Golden Oak and Rosewood available as upgrades. RAL colours are also available on request.
White door furniture is supplied as standard, with optional Black, Chrome or Brass finishes.
Threshold Options
A standard threshold is supplied, with an optional Low Aluminium Threshold available as an upgrade.
Made-to-Measure Bi-Fold Doors in Bristol
If you are looking for a 5 pane uPVC bi-fold door for a larger opening in Bristol or the surrounding area, this made-to-measure one-fold configuration offers a flexible solution. The combination of five folding panels, A-rated glazing and a choice of frame and hardware finishes allows the door to be specified to suit your project.
For assistance or further information, please contact our support team on 0117 971 9922.
Bi-Fold Installation Guide
| Dimension | |
|---|---|
| Minimum Panel Width (mm) | 500mm |
| Maximum Panel Width (mm) | 1000mm |
| Minimum overall width (mm) | 2620mm |
| Maximum overall width (mm) | 5120mm |
| Minimum Overall Height (mm) | 2070mm |
| Maximum Overall Height (mm) | 2320mm |
| Design | |
| Opening Options | Hinged left or right hand side |
| Folding Options | Folding internally or externally |
| Door Furniture colour options | White, Black. Chrome, Brass |
| Frame Colour Options | White, Golden Oak, Rosewood |
| Threshold Options | Standard or Low |
