Made-to-Measure UPVC 5 Pane Bi-Fold Folding Door with 1 Fixed Door – Custom Sizes, A-Rated, Secure & Stylish
- Brand: Master Plastics
- Product Code: BIFOLD541
- Availability: In Stock
Made-to-Measure 5 Pane uPVC Bi-Fold Door with Fixed Door
Our made-to-measure 5 pane uPVC bi-fold folding door with 1 fixed door combines four folding panels with a fixed door to provide a practical and stylish solution for larger openings. Designed to connect indoor and outdoor spaces, it offers a choice of configurations, colours and finishes to suit your home.
The door features a 70mm sculptured profile, A-rated glazing and a 5-point locking system. Available for openings from 2620mm to 5120mm wide, with a maximum height of 2320mm, it is made to measure for your requirements. We supply made-to-measure uPVC bi-fold doors in Bristol and surrounding areas.
5 Pane Bi-Fold Door Features
- Made to measure: Suitable for openings from 2620mm to 5120mm wide
- Maximum height: 2320mm
- Configuration: Four bi-fold panels with one fixed door
- Profile: 70mm sculptured profile
- Glazing: 28mm 4-20-4 clear Low-E toughened argon-filled glass
- Warm edge spacer bar: Included
- Energy rating: A-rated glazing
- Security: 5-point locking system
- Fixed door position: Left or right when viewed from outside
- Folding: Internal or external folding options
- Door furniture: White as standard, with Black, Chrome or Brass upgrades
- Frame colour: White as standard
- Frame colour upgrades: Golden Oak or Rosewood
- RAL colours: Available on request
- Threshold: Standard threshold supplied, with optional Low Aluminium Threshold

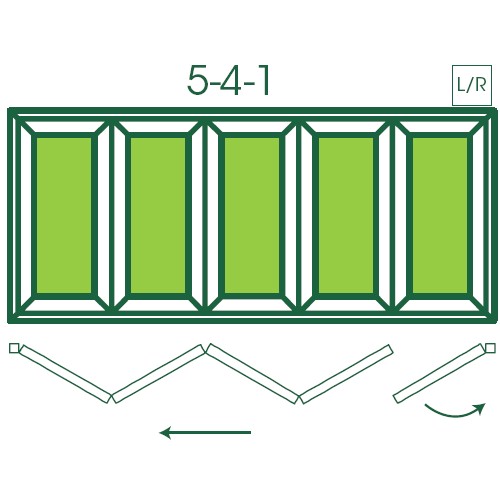

4 Folding Panels and 1 Fixed Door
This 5 pane bi-fold door configuration combines four folding panels with one fixed door. The fixed door can be positioned on the left or right when viewed from outside, while the folding section can be configured for internal or external folding to suit the available space.
A-Rated Low-E Toughened Glass
The door is supplied with 28mm 4-20-4 clear Low-E toughened argon-filled glass with a warm edge spacer bar. The glazing is A-rated and provides an energy-efficient option for your home.
uPVC Bi-Fold Door Colours and Hardware
The standard frame colour is white, with Golden Oak and Rosewood available as upgrades. RAL colours are also available on request.
White door furniture is supplied as standard, with optional Black, Chrome or Brass finishes.
Threshold Options
A standard threshold is supplied, with an optional Low Aluminium Threshold available as an upgrade.
Made-to-Measure Bi-Fold Doors in Bristol
If you are looking for a 5 pane uPVC bi-fold door with a fixed door in Bristol or the surrounding area, this made-to-measure configuration provides flexibility for larger openings. The combination of four folding panels, one fixed door, A-rated glazing and multiple colour and hardware options makes it suitable for a range of home improvement projects.
For assistance or further information, please contact our support team on 0117 971 9922.
Bi-Fold Installation Guide
| Dimension | |
|---|---|
| Minimum Panel Width (mm) | 500mm |
| Maximum Panel Width (mm) | 1000mm |
| Minimum overall width (mm) | 2620mm |
| Maximum overall width (mm) | 5120mm |
| Minimum Overall Height (mm) | 2070mm |
| Maximum Overall Height (mm) | 2320mm |
| Design | |
| Opening Options | Fixed door on left or right hand side |
| Folding Options | Folding internally or externally |
| Door Furniture colour options | White, Black, Chrome, Brass |
| Frame Colour Options | White, Golden Oak, Rosewood |
| Threshold Options | Standard or Low |
