Made-to-Measure UPVC 5 Pane Bi-Fold Folding Door – 3-2 Split, Custom Sizes, A-Rated
- Brand: Master Plastics
- Product Code: BIFOLD532
- Availability: In Stock
Made-to-Measure 5 Pane uPVC Bi-Fold Door – 3-2 Split
Our made-to-measure 5 pane uPVC bi-fold folding door features a versatile three-two split design, providing a flexible opening arrangement for larger door openings. With A-rated glazing, a 5-point locking system and a choice of colours and finishes, it combines contemporary styling with practical performance.
Suitable for openings from 2620mm to 5120mm wide, with a maximum height of 2320mm, this bi-fold door is manufactured to your required dimensions. We supply made-to-measure uPVC bi-fold doors in Bristol and surrounding areas.
5 Pane 3-2 Split Bi-Fold Door Features
- Made to measure: Suitable for openings from 2620mm to 5120mm wide
- Maximum height: 2320mm
- Configuration: Five bi-fold panels with a 3-2 split
- Glazing: 28mm 4-20-4 clear Low-E toughened argon-filled glass
- Warm edge spacer bar: Included
- Energy rating: A-rated glazing
- Security: 5-point locking system
- Panel arrangement: Choose whether the 3-panel section is on the left or right when viewed from outside
- Folding: Internal or external folding options
- Door furniture: White as standard, with Black, Chrome or Brass upgrades
- Frame colour: White as standard
- Frame colour upgrades: Golden Oak or Rosewood
- RAL colours: Available on request
- Threshold: Standard threshold supplied, with optional Low Aluminium Threshold

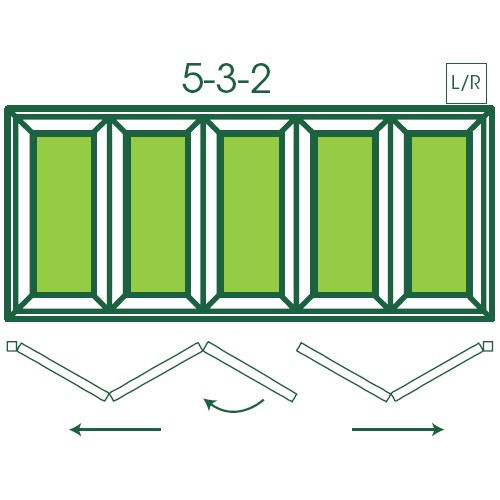

3-2 Split Bi-Fold Door Configuration
The three-two split configuration divides the five bi-fold panels into two sections, giving you a choice of which side the three-panel section is positioned. This allows the opening arrangement to be selected to suit the layout of your room and available space.
A-Rated Low-E Toughened Glass
The door is supplied with 28mm 4-20-4 clear Low-E toughened argon-filled glass incorporating a warm edge spacer bar. The glazing is A-rated and provides an energy-efficient option for your home.
uPVC Bi-Fold Door Colours and Hardware
The standard frame colour is white, with Golden Oak and Rosewood available as upgrades. RAL colours are also available on request.
White door furniture is supplied as standard, with optional Black, Chrome or Brass finishes.
Threshold Options
A standard threshold is supplied, with an optional Low Aluminium Threshold available as an upgrade.
Made-to-Measure Bi-Fold Doors in Bristol
If you are looking for a 5 pane uPVC bi-fold door with a 3-2 split in Bristol or the surrounding area, this made-to-measure configuration offers flexibility for larger openings. The combination of five folding panels, A-rated glazing and multiple frame and hardware options allows the door to be specified to suit your project.
For assistance or further information, please contact our support team on 0117 971 9922.
Bi-Fold Installation Guide
| Dimension | |
|---|---|
| Minimum Panel Width (mm) | 500mm |
| Maximum Panel Width (mm) | 1000mm |
| Minimum overall width (mm) | 2620mm |
| Maximum overall width (mm) | 5120mm |
| Minimum Overall Height (mm) | 2070mm |
| Maximum Overall Height (mm) | 2320mm |
| Design | |
| Opening Options | Three panels on left or right hand side |
| Folding Options | Folding internally or externally |
| Door Furniture colour options | White, Black, Chrome, Brass |
| Frame Colour Options | White, Golden Oak, Rosewood |
| Threshold Options | Standard or Low |
