Made-to-Measure 6 Pane Bi-Fold Folding Sliding Door – Centre Split, A-Rated, Custom Sizes
- Brand: Master Plastics
- Product Code: BIFOLD633
- Availability: In Stock
Made-to-Measure 6 Pane uPVC Bi-Fold Door – Centre Split
Our made-to-measure 6 pane uPVC bi-fold folding sliding door is designed for larger openings, combining six bi-fold panels with a centre split for a balanced, symmetrical appearance. With a 70mm sculptured profile, A-rated glazing and a 5-point locking system, it provides a practical and contemporary solution for connecting your home with an outside space.
Available for openings from 3120mm to 6120mm wide, with a maximum height of 2320mm, the door can be configured to suit your requirements. We supply made-to-measure uPVC bi-fold doors in Bristol and surrounding areas.
6 Pane uPVC Bi-Fold Door Features
- Made to measure: Suitable for openings from 3120mm to 6120mm wide
- Maximum height: 2320mm
- Configuration: Six bi-fold panels with a centre split
- Profile: 70mm sculptured profile
- Glazing: 28mm 4-20-4 clear Low-E toughened argon-filled glass
- Warm edge spacer bar: Included
- Energy rating: A-rated glass
- Security: 5-point locking system
- Folding: Internal or external folding options
- Door furniture: White supplied as standard, with Black, Chrome or Brass upgrades
- Frame colour: White as standard
- Frame colour upgrades: Golden Oak or Rosewood
- RAL colours: Available on request
- Threshold: Standard threshold supplied, with optional Low Aluminium Threshold

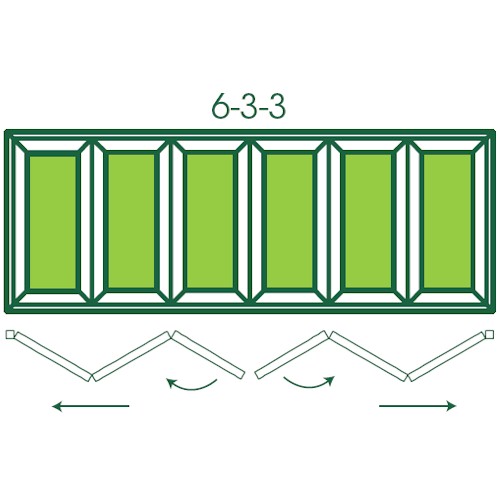

Centre Split 6 Pane Bi-Fold Door
The six-panel centre split design provides a symmetrical arrangement for larger openings. The six bi-fold panels can be configured to fold either internally or externally, allowing the door arrangement to be selected to suit the available space.
A-Rated Low-E Glass
The door is supplied with 28mm 4-20-4 clear Low-E toughened argon-filled glass incorporating a warm edge spacer bar. The glazing is specified as A-rated and provides an energy-efficient option for the home.
uPVC Bi-Fold Door Colours and Hardware
The standard frame colour is white, with Golden Oak and Rosewood available as upgrades. RAL colours are also available on request.
White door furniture is supplied as standard, with optional Black, Chrome or Brass finishes.
Threshold Options
A standard threshold is supplied, with an optional Low Aluminium Threshold available as an upgrade.
Made-to-Measure Bi-Fold Doors in Bristol
If you are looking for a 6 pane uPVC bi-fold door for a larger opening in Bristol or the surrounding area, this centre split configuration provides a flexible made-to-measure option. The combination of six folding panels, A-rated glazing and multiple colour and hardware choices allows the door to be specified to suit your project.
For assistance or further information, please contact our support team on 0117 971 9922.
Bi-Fold Installation Guide: Click Here
| Dimension | |
|---|---|
| Minimum Panel Width (mm) | 500mm |
| Maximum Panel Width (mm) | 1000mm |
| Minimum overall width (mm) | 3120mm |
| Maximum overall width (mm) | 6120mm |
| Minimum Overall Height (mm) | 2070mm |
| Maximum Overall Height (mm) | 2320mm |
| Design | |
| Opening Options | N/A |
| Folding Options | Folding internally or externally |
| Door Furniture colour options | White, Black, Chrome, Brass |
| Frame Colour Options | White, Golden Oak, Rosewood |
| Threshold Options | Standard or Low |
