Made-to-Measure Seven Pane Bi-Fold Folding Sliding Door – Single Folding Unit, Custom Sizes, A-Rated
- Brand: Master Plastics
- Product Code: BIFOLD770
- Availability: In Stock
Made-to-Measure 7 Pane uPVC Bi-Fold Doors
Our made-to-measure seven pane uPVC bi-fold folding sliding door is designed as a single folding unit, providing a wide opening and a clean, modern appearance. With seven panels, A-rated glazing and a 5-point locking system, it offers a flexible solution for larger openings.
We supply made-to-measure uPVC bi-fold doors in Bristol and surrounding areas, with a choice of folding direction, frame colours, hardware finishes and threshold options.
7 Pane uPVC Bi-Fold Door Features
- Made to measure: Suitable for openings from 3620mm to 7120mm wide
- Maximum height: 2320mm
- Configuration: Seven panels as a single folding unit
- Glazing: 28mm 4-20-4 clear Low-E toughened argon-filled glass
- Warm edge spacer bar: Included
- Energy rating: A-rated glass
- Security: 5-point locking system
- Hinge position: Choose left or right when viewed from outside
- Folding direction: Internal or external folding
- Standard furniture: White
- Furniture upgrades: Black, Chrome or Brass
- Standard frame colour: White
- Frame upgrades: Golden Oak or Rosewood
- RAL colours: Available on request
- Standard threshold: Included
- Low threshold option: Low Aluminium Threshold available

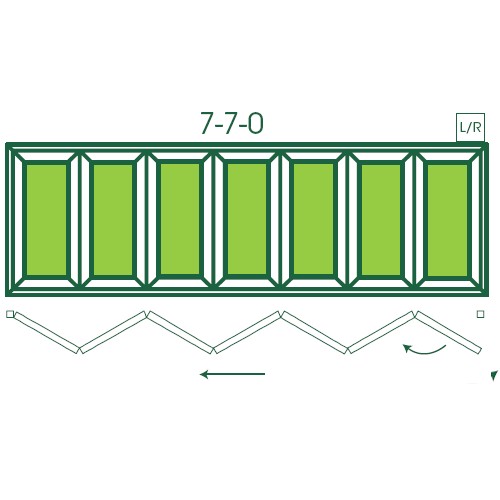

7 Pane Single Folding Bi-Fold Door
The seven pane bi-fold door is supplied as a single folding unit, with all seven panels forming one folding arrangement. The hinge position can be selected on the left or right when viewed from outside, with internal or external folding available.
A-Rated uPVC Bi-Fold Door Glazing
The doors feature 28mm 4-20-4 clear Low-E toughened argon-filled glass with a warm edge spacer bar. The glazing is specified as A-rated and provides an energy-efficient glazing solution.
uPVC Bi-Fold Door Colours and Hardware
White is supplied as standard, with Golden Oak and Rosewood available as frame colour upgrades. RAL colours are also available on request.
White door furniture is supplied as standard, with optional Black, Chrome or Brass hardware finishes.
Bi-Fold Door Threshold Options
A standard threshold is included, with an optional Low Aluminium Threshold available as an upgrade for a more streamlined entrance.
Made-to-Measure Bi-Fold Doors in Bristol
These 7 pane uPVC bi-fold doors are made to measure for openings from 3620mm to 7120mm wide. If you are looking for uPVC bi-fold doors in Bristol or the surrounding area, we can help with the available sizing and configuration options.
For further information or assistance with your requirements, please contact our support team on 0117 971 9922.
Bi-Fold Installation Guide: Click Here
| Dimension | |
|---|---|
| Minimum Panel Width (mm) | 500mm |
| Maximum Panel Width (mm) | 1000mm |
| Minimum overall width (mm) | 3620mm |
| Maximum overall width (mm) | 7120mm |
| Minimum Overall Height (mm) | 2070mm |
| Maximum Overall Height (mm) | 2320mm |
| Design | |
| Opening Options | Hinged on left or right hand side |
| Folding Options | Folding internally or externally |
| Door Furniture colour options | White, Black, Chrome, Brass |
| Frame Colour Options | White, Golden Oak, Rosewood |
| Threshold Options | Standard or Low |
