Made-to-Measure 7 Pane Bi-Fold Folding Sliding Door – 6 Bifold Panels + 1 Fixed Door, A-Rated, Custom Sizes
- Brand: Master Plastics
- Product Code: BIFOLD761
- Availability: In Stock
Made-to-Measure 7 Pane uPVC Bi-Fold Doors
Our made-to-measure 7 pane uPVC bi-fold folding sliding door is designed for large openings, combining six bi-fold panels with one fixed door to create a wide opening and bring more natural light into your home. With A-rated glazing, a 5-point locking system and a choice of configurations and finishes, these doors are suitable for a range of home improvement projects.
We supply made-to-measure uPVC bi-fold doors in Bristol and surrounding areas, with flexible sizing, folding direction, colours, hardware and threshold options.
7 Pane uPVC Bi-Fold Door Features
- Made to measure: Suitable for openings from 3620mm to 7120mm wide
- Maximum height: 2320mm

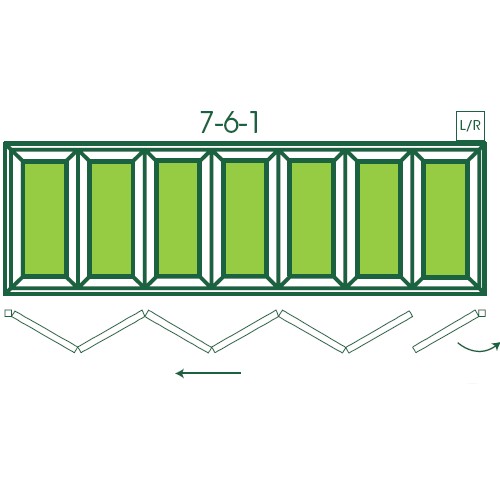

- Configuration: Six bi-fold panels plus one fixed door
- Glazing: 28mm 4-20-4 clear Low-E toughened argon-filled glass
- Warm edge spacer bar: Included
- Security: 5-point locking system
- Fixed door hinge: Choose left or right
- Folding direction: Internal or external folding
- Standard furniture: White
- Furniture upgrades: Black, Chrome or Brass
- Standard frame colour: White
- Frame upgrades: Golden Oak or Rosewood
- RAL colours: Available on request
- Standard threshold: Included
- Low threshold option: Low Aluminium Threshold available
Large 7 Pane Bi-Fold Door
The 7 pane bi-fold door combines six folding panels with one fixed door, making it suitable for larger openings where a wide opening and flexible configuration are required. The maximum stated opening width is 7120mm, with a maximum height of 2320mm.
A-Rated uPVC Bi-Fold Door Glazing
The doors feature 28mm 4-20-4 clear Low-E toughened argon-filled glass with a warm edge spacer bar. The glazing is specified as A-rated and provides an energy-efficient glazing solution for the home.
Flexible Folding Configuration
The fixed door can be positioned with the hinge on either the left or right. The bi-fold panels can also be configured to fold internally or externally, allowing the door arrangement to be selected to suit the available space.
uPVC Bi-Fold Door Colours and Hardware
White is supplied as standard, with Golden Oak and Rosewood available as frame upgrades. RAL colours are also available on request.
White door furniture is supplied as standard, with optional Black, Chrome or Brass hardware finishes.
Bi-Fold Door Threshold Options
A standard threshold is included, with an optional Low Aluminium Threshold available for a cleaner, more streamlined entrance.
Made-to-Measure Bi-Fold Doors in Bristol
These 7 pane uPVC bi-fold doors are manufactured to your specified requirements and are particularly suited to larger openings. If you are looking for uPVC bi-fold doors in Bristol or the surrounding area, we can help with the available sizing and configuration options.
For further information or assistance with your requirements, please contact our support team on 0117 971 9922.
Bi-Fold Installation Guide: Click Here
| Dimension | |
|---|---|
| Minimum Panel Width (mm) | 500mm |
| Maximum Panel Width (mm) | 1000mm |
| Minimum overall width (mm) | 3620mm |
| Maximum overall width (mm) | 7120mm |
| Minimum Overall Height (mm) | 2070mm |
| Maximum Overall Height (mm) | 2320mm |
| Design | |
| Opening Options | Fixed door on left or right hand side |
| Folding Options | Folding internally or externally |
| Door Furniture colour options | White, Black, Chrome, Brass |
| Frame Colour Options | White, Golden Oak, Rosewood |
| Threshold Options | Standard or Low |
