Made-to-Measure 7 Pane Bi-Fold Folding Sliding Door – A-Rated, Custom Sizes, 4-3 Split
- Brand: Master Plastics
- Product Code: BIFOLD734
- Availability: In Stock
Made-to-Measure 7 Pane uPVC Bi-Fold Doors – 4-3 Split
Our made-to-measure 7 pane uPVC bi-fold folding sliding door features a four-three split design with seven bi-fold panels. Designed for larger openings, it combines a modern appearance with A-rated glazing, a 5-point locking system and flexible configuration options.
We supply made-to-measure uPVC bi-fold doors in Bristol and surrounding areas, with a choice of folding direction, frame colours, hardware finishes and threshold options.
7 Pane uPVC Bi-Fold Door Features
- Made to measure: Suitable for openings from 3620mm to 7120mm wide
- Maximum height: 2320mm
- Configuration: Seven bi-fold panels with a four-three split
- Glazing: 28mm 4-20-4 clear Low-E toughened argon-filled glass
- Warm edge spacer bar: Included
- Energy rating: A-rated glass
- Security: 5-point locking system
- Folding direction: Four panels can fold to the left or right
- Folding configuration: Internal or external folding
- Standard furniture: White
- Furniture upgrades: Black, Chrome or Brass
- Standard frame colour: White
- Frame upgrades: Golden Oak or Rosewood
- RAL colours: Available on request
- Standard threshold: Included
- Low threshold option: Low Aluminium Threshold available

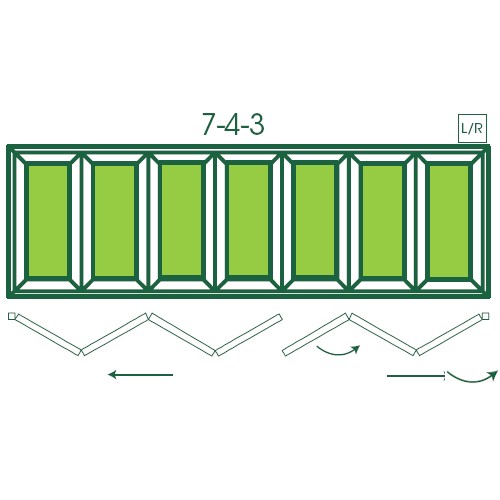

7 Pane Bi-Fold Door with Four-Three Split
The four-three split configuration uses seven bi-fold panels and is designed for larger openings. The four-panel section can fold to either the left or right, while the overall system can be configured for internal or external folding.
A-Rated uPVC Bi-Fold Door Glazing
The doors feature 28mm 4-20-4 clear Low-E toughened argon-filled glass with a warm edge spacer bar. The glazing is specified as A-rated and provides an energy-efficient glazing solution.
uPVC Bi-Fold Door Colours and Hardware
White is supplied as standard, with Golden Oak and Rosewood available as frame colour upgrades. RAL colours are also available on request.
White door furniture is supplied as standard, with optional Black, Chrome or Brass hardware finishes.
Bi-Fold Door Threshold Options
A standard threshold is included, with an optional Low Aluminium Threshold available as an upgrade.
Made-to-Measure Bi-Fold Doors in Bristol
These 7 pane uPVC bi-fold doors are made to measure for larger openings from 3620mm to 7120mm wide. If you are looking for uPVC bi-fold doors in Bristol or the surrounding area, we can help with the available sizing and configuration options.
For further assistance, please contact our support team on 0117 971 9922.
Bi-Fold Installation Guide: Click Here
| Dimension | |
|---|---|
| Minimum Panel Width (mm) | 500mm |
| Maximum Panel Width (mm) | 1000mm |
| Minimum overall width (mm) | 3620mm |
| Maximum overall width (mm) | 7120mm |
| Minimum Overall Height (mm) | 2070mm |
| Maximum Overall Height (mm) | 2320mm |
| Design | |
| Opening Options | 4 panels hindged on left or right hand side |
| Folding Options | Folding internally or externally |
| Door Furniture colour options | White, Black, Chrome, Brass |
| Frame Colour Options | White, Golden Oak, Rosewood |
| Threshold Options | Standard or Low |
