Made-to-Measure 6 Pane Bi-Fold Folding Sliding Door with Fixed Panel – A-Rated, Custom Sizes
- Brand: Master Plastics
- Product Code: BIFOLD651
- Availability: In Stock

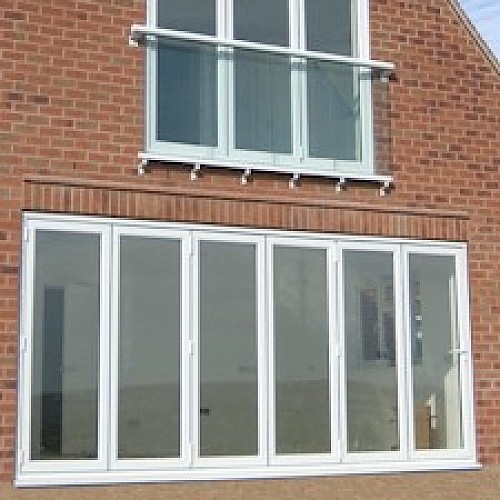

Made-to-Measure 6 Pane uPVC Bi-Fold Door with Fixed Panel
Our made-to-measure 6 pane uPVC bi-fold folding sliding door combines five bi-fold panels with one fixed panel, providing a practical solution for larger openings where a fixed section is required. The door features a 70mm sculptured profile, A-rated glazing and a 5-point locking system.
Available for made-to-measure openings from 3120mm to 6120mm wide, with a maximum height of 2320mm, this uPVC bi-fold door can be configured to suit your requirements. We supply made-to-measure uPVC bi-fold doors in Bristol and surrounding areas.
6 Pane uPVC Bi-Fold Door Features
- Made to measure: For openings from 3120mm to 6120mm wide
- Maximum height: 2320mm

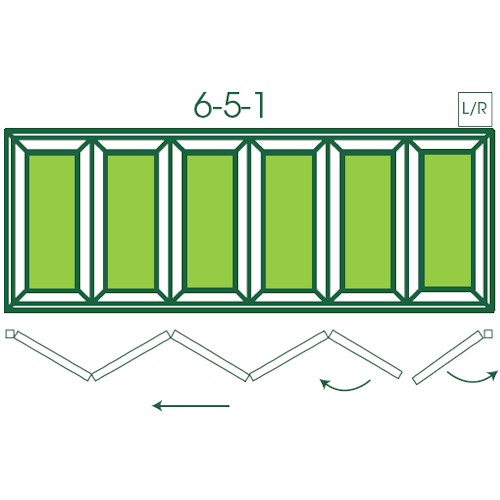

- Configuration: Five bi-fold panels with one fixed panel
- Profile: 70mm sculptured profile
- Glazing: 28mm 4-20-4 clear Low-E toughened argon-filled glass
- Warm edge spacer bar: Included
- Energy rating: A-rated glass
- Security: 5-point locking system
- Folding: Internal or external folding options
- Door furniture: White supplied as standard, with Chrome or Brass upgrades
- Frame colour: White as standard
- Frame colour upgrades: Golden Oak or Rosewood
- RAL colours: Available on request
- Threshold: Standard threshold supplied, with optional Low Aluminium Threshold
Five Bi-Fold Panels and Fixed Panel
This 6 pane bi-fold door combines five folding panels with a fixed panel, giving you the benefits of a wide bi-fold opening while retaining a fixed glazed section. The configuration is particularly suited to larger openings where this arrangement is preferred.
A-Rated Low-E Glazing
The door uses 28mm 4-20-4 clear Low-E toughened argon-filled glass with a warm edge spacer bar. The glazing is specified as A-rated, providing an energy-efficient glazing option for the home.
uPVC Bi-Fold Door Colours and Hardware
The standard frame colour is white, with Golden Oak and Rosewood available as upgrades. RAL colours are available on request.
White door furniture is supplied as standard, with optional Chrome or Brass finishes.
Threshold Options
A standard threshold is supplied, with an optional Low Aluminium Threshold available as an upgrade.
Made-to-Measure Bi-Fold Doors in Bristol
With made-to-measure sizing and flexible configuration options, this 6 pane uPVC bi-fold door with fixed panel provides a versatile solution for larger openings. If you are looking for uPVC bi-fold doors in Bristol or the surrounding area, contact us to discuss your requirements.
For assistance or further information, please contact our support team on 0117 971 9922.
Bi-Fold Installation Guide: Click Here
| Dimension | |
|---|---|
| Minimum Panel Width (mm) | 500mm |
| Maximum Panel Width (mm) | 1000mm |
| Minimum overall width (mm) | 3120mm |
| Maximum overall width (mm) | 6120mm |
| Minimum Overall Height (mm) | 2070mm |
| Maximum Overall Height (mm) | 2320mm |
| Design | |
| Opening Options | Fixed door on left or right hand side |
| Folding Options | folding internally or externally |
| Door Furniture colour options | White, Black, Chrome, Brass |
| Frame Colour Options | White, Golden Oak, Rosewood |
| Threshold Options | Standard or Low |
