Liniar uPVC Sliding Patio Doors - 2, 3 & 4 Pane

Our Liniar uPVC sliding patio doors are made to measure using the Liniar EnergyPlus profile system, combining large glazed areas with smooth sliding operation and the security of the ModLok™ locking system.

Available in 2-pane, 3-pane and 4-pane configurations, these patio doors can accommodate a wide range of openings from 1600mm up to 5825mm wide, depending on the selected configuration.

Liniar Sliding Patio Door Sizes

Choose the appropriate configuration for your required opening:

• 2-Pane Patio Door: 1600mm to 2400mm wide
• 3-Pane Patio Door: 2400mm to 3600mm wide
• 4-Pane Patio Door: 3200mm to 5825mm wide
• Height: 1900mm to 2400mm

Each patio door is made to measure within the available dimensions for the selected configuration.

Liniar EnergyPlus uPVC Profile

The doors are manufactured using Liniar EnergyPlus uPVC profile, providing a modern patio door system with slim sightlines and large glazed areas to help maximise natural light.

A-Rated Glazing

The supplied specification includes clear, toughened, argon-filled double glazing as standard as part of the A-rated door specification.

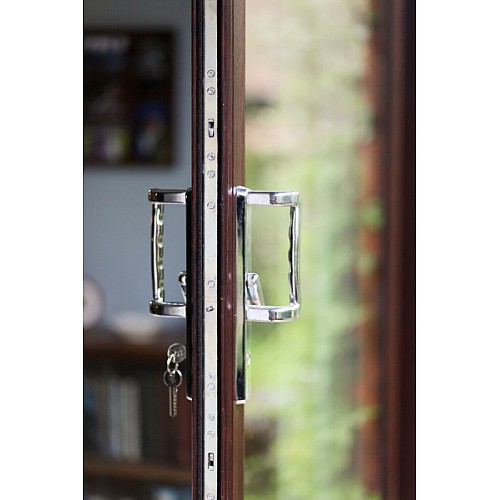

ModLok™ Security

The patio door incorporates Liniar's ModLok™ modular locking system with multi-point locking for additional strength and security.

Smooth Sliding Operation

The Liniar patio door system is designed to provide smooth, quiet sliding operation. The system incorporates brushes that help clear debris from the track during operation.

Handle Colour Options

Door furniture is available in a choice of:

• White
• Chrome
• Black
• Brass

Choose the Sliding Direction

Select whether the opening section of the patio door should slide left or slide right when viewed from outside.

2, 3 or 4-Pane Patio Door?

The correct configuration will depend primarily on the width of your opening:

• 2-pane: Suitable for widths from 1600mm to 2400mm
• 3-pane: Suitable for widths from 2400mm to 3600mm
• 4-pane: Suitable for larger widths from 3200mm to 5825mm

There is some overlap between the available configurations, so the final choice can also depend on the required appearance and opening arrangement.

Specifications

• Manufacturer/System: Liniar
• Profile: Liniar EnergyPlus
• Door type: uPVC sliding patio door
• Configurations: 2-pane, 3-pane or 4-pane
• Overall width range: 1600mm to 5825mm, depending on configuration
• Height: 1900mm to 2400mm
• Glazing: Clear, toughened, argon-filled double glazing
• Energy rating: A-rated specification
• Locking system: ModLok™ multi-point locking system
• Handle colours: White, Chrome, Black or Brass
• Sliding direction: Left or right, viewed from outside
• Manufacture: Made to measure

Made-to-Measure uPVC Patio Doors

Each Liniar sliding patio door is manufactured to the dimensions specified when ordering. Check your measurements carefully and select the appropriate 2, 3 or 4-pane configuration for the required opening.

If you need help confirming the correct configuration before ordering, contact Master Plastics on 0117 971 9922.

Frequently Asked Questions

What is the maximum width of a Liniar sliding patio door?

The 4-pane configuration is available up to 5825mm wide. The maximum width depends on the number of panes selected.

What sizes are available for a 2-pane patio door?

The 2-pane version is available from 1600mm to 2400mm wide.

What sizes are available for a 3-pane patio door?

The 3-pane version is available from 2400mm to 3600mm wide.

What sizes are available for a 4-pane patio door?

The 4-pane version is available from 3200mm to 5825mm wide.

Can I choose which way the patio door slides?

Yes. Select whether the door should slide left or right, with the direction specified as viewed from outside.

Are the patio doors made to measure?

Yes. The doors are manufactured to your specified dimensions within the size limits for the selected configuration.
