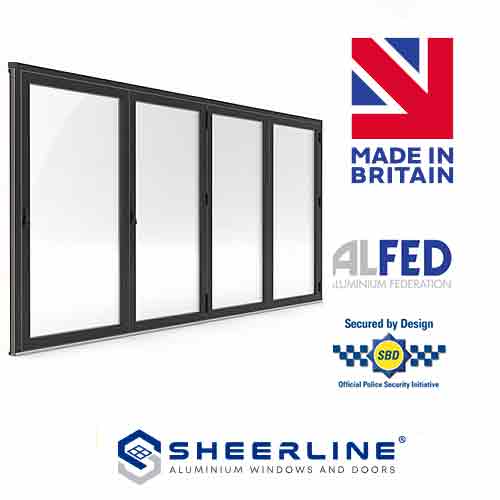

Made-to-Measure Aluminium 4-Panel Bi-Fold Door – Anthracite Grey with Exceptional Thermal Performance
- Brand: Master Plastics
- Product Code: SHEERLINE4
- Availability: In Stock
4 Panel Aluminium Bi-Fold Doors - Made to Measure Bristol
Our 4 Panel Aluminium Bi-Fold Doors combine slim contemporary styling, large glazed areas and excellent thermal performance to create an impressive opening between your home and garden.
Made to measure in Bristol, these four-panel bifold doors are available from 2350mm to 4000mm wide and up to 2400mm high, making them particularly suitable for larger openings, extensions, kitchen-diners and open-plan living spaces.
Anthracite Grey is an extremely popular choice for modern properties, but the doors are also available in Pure White, Heritage Cream and Jet Black at no additional colour surcharge.
Made-to-Measure 4 Panel Aluminium Bifold Doors
Each door is manufactured to your required dimensions rather than being restricted to a fixed standard size. Enter your required width and height when ordering and select the opening configuration, glazing, colour, hardware and threshold required for your project.
- Minimum Width: 2350mm
- Maximum Width: 4000mm
- Minimum Height: 2020mm
- Maximum Height: 2400mm
- Configuration: 4 Panel / 4 Sash
- Material: Aluminium Composite System
- Manufacture: Made to Measure
Thermally Efficient Aluminium Bi-Fold Doors
The door system combines aluminium with a full-width thermal core designed to reduce heat transfer through the frame while retaining the slim appearance associated with aluminium doors.
This construction provides an excellent combination of thermal performance, strength and contemporary aluminium styling for modern residential projects.
28mm Toughened Double Glazing
The standard specification includes 28mm toughened double glazing, providing large glazed areas while maintaining the safety and thermal performance required from an external folding door.
- Standard Glass: 28mm Toughened Double Glazing
- Standard U-Value: Approximately 1.4 W/m²K
44mm Triple Glazing Upgrade
For projects requiring enhanced thermal performance, the doors can be upgraded to 44mm triple glazing.
Depending on the complete door specification, the triple-glazed system can achieve a U-value of approximately 1.0 W/m²K.
Triple glazing is particularly worth considering for new-build properties, highly insulated extensions and renovation projects where improved thermal performance is a priority.
4 Panel Bifold Door Opening Configurations
The four-panel configuration provides flexibility in how the doors operate. Select the required arrangement when ordering to suit your room, garden and available space.
Configuration options include:
- Left-Hand Opening - viewed from outside
- Right-Hand Opening - viewed from outside
- French Door Style Configuration
- Internal Folding
- External Folding
Please carefully check the opening and folding direction selected before placing your order.
Anthracite Grey Aluminium Bifold Doors
Anthracite Grey aluminium bifold doors are a popular choice for extensions and contemporary properties, providing a modern finish that works particularly well with large areas of glass.
Other standard frame colours are also available:
- Anthracite Grey
- Pure White
- Heritage Cream
- Jet Black
Choice of Bifold Door Hardware
Choose from three hardware finishes to coordinate your handles and door furniture with the frame and surrounding property:
- Matt Black
- Satin Silver
- Brushed Graphite
Choice of Aluminium Sash Style
The appearance of the door can be further customised with a choice of sash profile styles:
- Pencil Round
- Decorative
- Square
- Chamfered
Standard or Low Aluminium Threshold
The doors are available with a standard entrance threshold or an optional low aluminium threshold where a reduced step is preferred and the installation conditions are suitable.
A choice of cill options is also available to suit different installation requirements.
Ideal for Large Openings
A 4 panel aluminium bifold door is an excellent option where you want to create a substantial glazed opening while retaining the flexibility of folding door panels.
With widths available up to 4 metres, this configuration is particularly suitable for:
- Kitchen extensions
- Kitchen-diners
- Open-plan living areas
- Garden rooms
- Orangeries
- New-build homes
- Property renovations
- Replacement patio doors
- Large garden-facing openings
Aluminium Bifold Doors Bristol
We manufacture and supply made-to-measure aluminium bifold doors in Bristol for homeowners, builders, property developers and trade customers.
If you're looking for aluminium bifold doors in Bristol, our made-to-measure service allows you to specify the dimensions, opening configuration, glazing, frame colour, hardware and threshold required for your project.
Our aluminium doors are available for projects throughout Bristol and the surrounding area, with delivery options also available to customers elsewhere in the UK.
4 Panel Aluminium Bifold Door Specification
- Product: 4 Panel Aluminium Bi-Fold Door
- Number of Panels: 4
- Minimum Width: 2350mm
- Maximum Width: 4000mm
- Minimum Height: 2020mm
- Maximum Height: 2400mm
- Construction: Aluminium with Full-Width Thermal Core
- Standard Glazing: 28mm Toughened Double Glazing
- Triple Glazing Option: 44mm
- Standard U-Value: Approximately 1.4 W/m²K
- Triple Glazed U-Value: Approximately 1.0 W/m²K depending on specification
- Folding Direction: Internal or External
- Frame Colours: Anthracite Grey, Pure White, Heritage Cream or Jet Black
- Hardware: Matt Black, Satin Silver or Brushed Graphite
- Sash Styles: Pencil Round, Decorative, Square or Chamfered
- Threshold: Standard or Low Aluminium Threshold
- Manufacture: Made to Measure
Ordering Your Aluminium Bifold Doors
Enter the required overall width and height and select your preferred opening configuration, folding direction, frame colour, glazing, hardware, sash style and threshold.
As every aluminium bifold door is manufactured to order, please check all measurements and configuration choices carefully before placing your order.
If you require a size or configuration that is not available through the standard options, please contact us to discuss your requirements.
