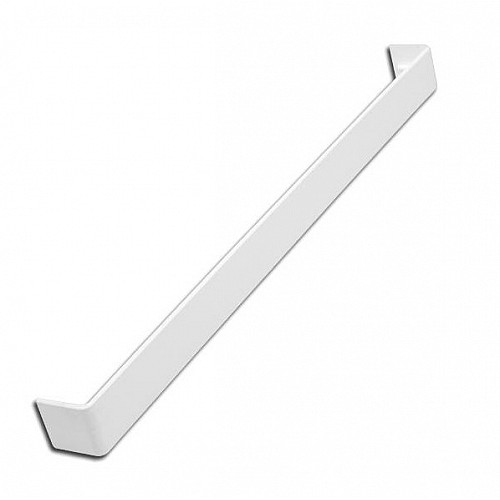

500mm uPVC Fascia Double Joint White – Cut to Size

The 500mm uPVC Fascia Double Joint is designed to join two lengths of compatible fascia board along a straight run. The double-ended profile covers the ends of both boards, providing a neat and professional finish while allowing for thermal movement.

Fascia Board Double Joint

Where a roofline requires more than one length of fascia, this double-ended fascia joint provides a clean finishing detail between the adjoining boards. The joint is supplied at 500mm long and can be cut to size to suit the installation.

Allow a 5mm Expansion Gap

When joining fascia boards, allow a 5mm gap between the ends of the boards. This allows the uPVC to accommodate thermal expansion and contraction as temperatures change.

The joint should be glued on one side only. This allows the fascia board to move within the joint while keeping the finishing trim securely positioned.

Product Specifications

• Product Type: Fascia Board Double Joint
• Material: uPVC
• Length: 500mm
• Design: Double Ended Joint
• Application: Joining Fascia Boards on Straight Runs
• Installation: Leave a 5mm expansion gap between boards
• Adhesive: Glue the joint on one side only
• Cutting: Can be cut to size

Designed for Straight Fascia Runs

This fascia double joint is intended for situations where two lengths of fascia board meet along a straight run. The profile covers the ends of both boards and conceals the expansion gap, creating a clean and consistent roofline finish.

Cut to Size for Your Installation

The 500mm length can be cut to size where required, making the joint suitable for different fascia board widths and installation details. Always ensure the joint is compatible with the fascia profile being installed.

Professional Fascia Joint Installation

For correct installation, position the adjoining fascia boards with a 5mm expansion gap between them. Fit the double-ended joint over the meeting point and secure the joint with adhesive on one side only.

This installation method allows the fascia boards to move with changes in temperature rather than restricting their natural expansion and contraction.

Ideal for New and Replacement Fascias

The 500mm Fascia Board Double Joint is suitable for new roofline installations, replacement fascias and refurbishment projects where two compatible fascia boards need to be joined along a straight run.

Complete Fascia & Soffit System

Use this 500mm Fascia Board Double Joint with compatible fascia boards, soffits, external corners, trims, fixings and other roofline accessories to complete your installation.
