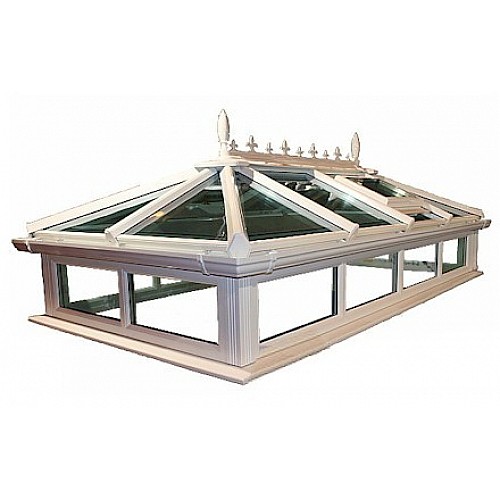

Up To 3.0m x 7.0m Made to Measure Glass Roof Lantern

Transform a large extension with a made-to-measure glass roof lantern up to 3.0m x 7.0m. Designed for substantial flat roof extensions, kitchens, dining rooms and open-plan living spaces, this impressive roof lantern brings natural daylight deep into the room while creating a striking glazed feature.

Each roof lantern is manufactured to your required dimensions up to a maximum 3000mm x 7000mm internal frame size and comes complete with Low-E toughened argon-filled glass in the roof and sides as standard.

Low-E Toughened Glass as Standard

Our glass roof lanterns are supplied with Low-E toughened argon-filled glazing in both the roof and side frames as standard, providing a high-quality glazed roof system suitable for extensions, conservatories and other living spaces.

The roof glass can also be upgraded to self-cleaning glass or blue-tinted glass, with double or triple-glazed options available.

Complete Made to Measure Roof Lantern

• Maximum Internal Frame Size: 3000mm x 7000mm
• Manufacture: Made to measure
• Window Profiles: 70mm
• Opening Windows: Optional
• Standard Glazing: Low-E toughened argon-filled glass
• Roof Glass Upgrades: Self-cleaning or blue tint
• Glazing Options: Double or triple glazed
• Guttering: Hunter Regency gutter
• Roof Vents: Manual or electric options available
• Crestings & Finials: Optional

Industry Preferred Roof Bar System

The lantern incorporates an industry-preferred roof bar system designed for strength, durability and straightforward installation. The aluminium roof bars provide the structural support required for the glazed roof while retaining the attractive appearance of a traditional roof lantern.

Roof Lantern Colour Options

Choose from a range of profile and roof bar colours to complement your property, windows and doors.

• White
• Rosewood
• Mahogany
• Light Oak

Aluminium roof bars are also available in Light Oak, Mahogany and Rosewood finishes.

Optional Opening Windows

The 70mm side frames can incorporate optional opening windows, allowing additional ventilation into the room below. This can be particularly useful on larger roof lanterns installed over kitchens and open-plan living areas.

Selecting Your Roof Vent

Optional opening roof vents can be incorporated into the glazed roof, with manual and electric operating options available.

Manual Roof Vent

The manual roof vent is opened and closed using an extending operating handle. The extending handle is sold separately.

Electric Roof Vent

The electric roof vent uses a motorised opening mechanism and requires connection to a suitable rocker switch, which is not supplied.

Electric Roof Vent with Climate Control & Rain Sensor

For greater convenience, an electric opening roof vent is available with climate control and a rain sensor, providing an automated ventilation option.

3.0m x 7.0m Roof Lantern Size Guide

All advertised sizes are internal frame sizes. The window profiles are 70mm wide, adding approximately 140mm to the overall external frame dimensions.

The actual cill is approximately 160mm wide, adding approximately 320mm to the stated internal dimensions.

For a roof lantern manufactured at the maximum 3000mm x 7000mm internal frame size, the approximate overall dimensions are:

• Internal Frame Size: 3000mm x 7000mm
• External Frame Size: 3140mm x 7140mm
• External Cill Size: 3320mm x 7320mm

For smaller made-to-measure sizes, the external frame and cill dimensions will change accordingly.

Large Glass Roof Lantern for Flat Roof Extensions

A 3.0m x 7.0m glass roof lantern provides an impressive expanse of glazing and is particularly suited to substantial extensions where natural daylight is an important part of the design.

• Large Kitchen Extensions
• Kitchen-Diners
• Open-Plan Living Areas
• Dining Rooms
• Garden Rooms
• Conservatories
• Large Flat Roof Extensions

Made to Measure Up To 3.0m x 7.0m

This glass roof lantern can be manufactured to your required dimensions up to a maximum internal frame size of 3000mm x 7000mm, allowing the lantern to be tailored to suit your individual roof opening.

Important: Please check your required internal frame dimensions carefully before ordering and allow for the additional frame and cill dimensions when preparing the supporting roof structure.
