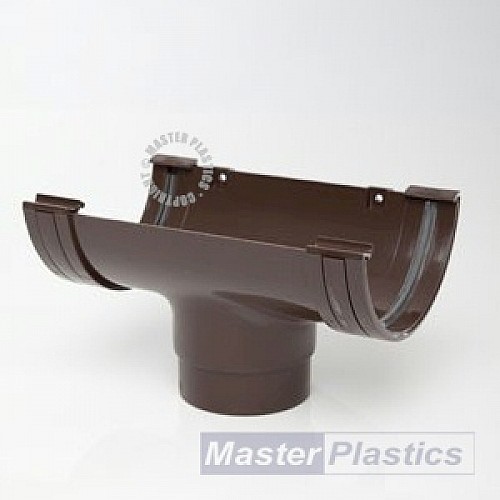

150mm Brown Half Round - Running Outlets for Poly Pipe Industrial Gutter

My Account Login

Checkout

Your shopping cart is empty!

Wish List 0 items

0117 971 9922

Mon-Fri 8:00 am to 6:00 pm

Featured

Available Options

Bi-Fold - Enter Opening Height in mm's

Bi-Fold - Enter Opening Width in mm's

Bi-Fold - Opening Direction Viewed From Outside

Bi-Fold - Folding Options

Bi-Fold - External Frame Colour

Bi-Fold - Internal Frame Colour

Bi-Fold - Door Hardware - Furniture

Bi-Fold Profile Finish

Bi-Fold - Threshold

Bi-Fold - Glazing Options

Bi-Fold Trickle vents

Aluminium French Door | Or 2 Pane Sliding Door

Brand: Master Plastics

Product Code: SHEERLINE2

£2,124.23 Ex Tax: £1,770.20

Designed from the ground up to offer market-leading thermal performance and comfortably meets the requirements of Building Regulations - Part L. Traditional aluminium doors struggle to meet current legislation, forcing you to choose aluminium aesthetics and finish over thermal performance. Innovative full-width thermal core. This unique composite construction creates its class's most thermally efficient folding sliding door.

Description: Made-to-measure Two-pane bi-fold / french door.

Profile: 2 opening sashes inside the A-rated aluminium profile.

Dimensions: Two panes bi-fold. Min Height 2020mm Max Height 2400mm, Min Width 1500mm, Max width 2000mm

Glass: Standard 28mm Toughened glass 1.4 value or upgrade to 44mm Triple glaze with an excellent u-value of 1.0 - 75% better than a standard Bi-fold.

Opening Direction: Looking at the door outside the house, do you want it hinged on the left or the right? The two-pane can also be supplied as a French door.

Internal or external folding: Select if you'd like your door to fold internally or externally

Hardware: You can choose Matt black, Satin Silver or Brushed Graphite.

Frame Colour: You can choose from Pure White, Heritage cream, Jet Black or Anthracite grey at no extra cost.

Sash Options: Pencil Round, Decorative, Square or Chamfered.

Threshold: This door comes with a standard point; you can upgrade to Low Aluminium Threshold in the options above. Cill options are available.

Need help? Give our support team a call.

text_quick

£2,124.23 Ex Tax: £1,770.20

Aluminium French Door | Or 2 Pane Sliding Door

UPVC White Plastic : 125mm Ogee Skirting Board - 5m Long x 18mm Thick

Brand: Kestrel

Product Code: 733/125BW

£38.56 Ex Tax: £32.13

Description: 125mm UPVC White Plastic skirting. Sold in 5m lengths (approx 18mm thick)

Use double sided tapes and solvent free glue to fix

Dimensions: 125mm Deep x 5m Long x 18mm Thick

text_quick

£38.56 Ex Tax: £32.13

UPVC White Plastic : 125mm Ogee Skirting Board - 5m Long x 18mm Thick

Available Options

Polycarbonate Color

Evolution Width

Roof Pitch ( degrees )

Front Post Height

Evolution Car Port Aluminium Carport Canopy 1600mm Projection

Brand: Master Plastics

Product Code: EVO1600X

£781.96 Ex Tax: £651.63

A high performance canopy system

Applications include: car ports, covered seating areas, covered play areas, porches, patio canopy, caravan cover, cycle/smoking shelters

Features of the canopy system include:

Maintenance free all aluminium powder coated construction
Integral eaves beam/box gutter with drainage through supporting posts
16mm triple wall polycarbonate glazing as standard in either clear, bronze or opal
Kits are supplied with all fixings and sealants required for installation

Posts:

2.25m as standard
3m posts available - cost £12.00 per post

Widths 2.5m & 3m - 2 posts

Widths 3.5m - 6m - 3 posts

Width 7m - 4 posts

Technical Information

Wall Plate: 115mm High 70mm Wide
Eaves Beam: 115mm High 80mm Wide
Edge Bars: 80mm High 30mm Wide
Main Bars: 60mm + Top Cap 3mm High 50mm Wide
Posts: 75mm x 75mm

The Evolution canopy can be made in any size, and also free-standing, call for a quote.

Select from 5^o , 10^o or 15^o pitch when ordering.

The evolution canopy is white as standards. Also available on most RAL colours, call for a quote

Please note : The 1.6m relates to the length of the slope, therefore the horizontal projection will vary dependant on the selected roof pitch.

More Information

The High Performance Canopy System

The Evolution Canopy is an exciting new system, encompassing a modern design with clean sight lines providing ease of installation. In addition, its high structural performance ensures this system is an ideal choice for domestic, DIY and commercial applications.
This highly versatile system offers a solution for many applications such as:
• car ports
• covered seating areas
• covered play areas
• porches
• patio canopies
• caravan shelters
• cycle shelters
• smoking shelters
• walk way covers

The system can be supplied in modular kit format (please see size matrix) as well as bespoke sizes and configurations.

For specific non-standard projections please contact us for technical support.
The kits are supplied with all the fixings and sealants required for a standard installation and also includes a comprehensive fitting guide.

System Features
• The system is manufactured in maintenance free powder coated aluminium in white as standard with any RAL no. colour available at extra cost and lead time.
• The canopy is glazed with 16mm triple wall UV stabilised polycarbonate sheeting offering greater flexibility in canopy design with enhanced strength and rigidity, available in clear, bronze or opal tints.
• The standard canopy range is available on a 10 - 20 working day lead time.
• The eaves beam cleverly double’s as an integral box gutter utilising the support posts as down pipes with the rain water exiting through the variable height post feet.
• The system can accommodate pitches from 5 degrees to 15 degrees, on standard modular kits the maximum projection is achieved at a pitch of 5 degrees.
• As well as the standard lean too configuration the system can be specified as a gable roof design with the wall plates bolted back to back to form a ridge supported between two host walls or as a fee standing option supported on posts.
