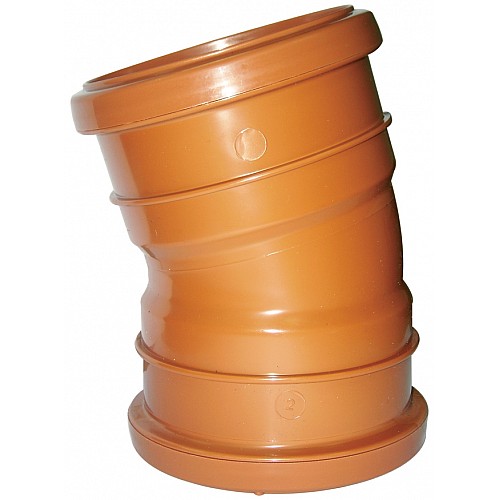

110mm Underground Double Socket Bend 15° D567

The 110mm Underground Double Socket Bend 15° is designed for compatible underground drainage systems where a 15° change of direction is required. Model D567 features a socket-to-spigot joint system with push-fit ring seal jointing and a seal and snap-cap design.

110mm Underground 15° Bend Features

• Model: D567
• Diameter: 110mm
• Angle: 15°
• Type: Double socket bend
• Material: PVC-U
• Jointing System: Push-fit with seal and snap-cap
• Joint Type: Ring seal
• Designed for underground drainage systems
• Suitable for gravity drainage and sewerage applications
• Suitable for depths up to 10m, according to the supplied product information

110mm D567 Double Socket Bend

The D567 110mm double socket bend provides a 15° change of direction within compatible underground drainage systems. The socket-to-spigot design provides a practical connection between compatible pipework.

110mm Push-Fit Underground Drainage Bend

The push-fit jointing system incorporates a ring seal with an innovative seal and snap-cap design. This provides a straightforward method of assembling compatible underground drainage pipework.

Applications

• Underground drainage systems
• Gravity drainage systems
• Sewerage systems
• Connecting compatible 110mm drainage pipes at 15°
• Applications involving high-temperature waste discharges
