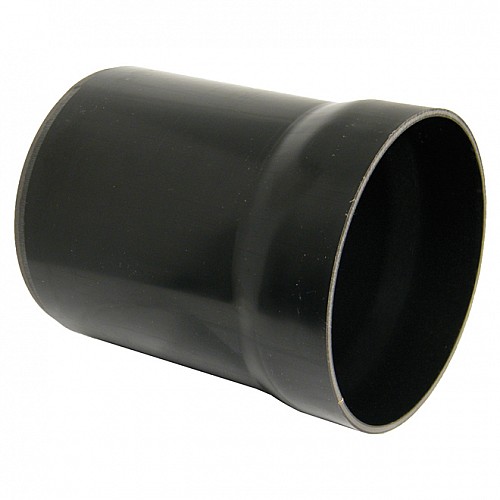

D505 Underground Gully Riser 200mm

The D505 Underground Gully Riser is designed to raise the gully grating by up to 200mm, providing flexibility when adjusting the finished ground level. Manufactured from durable 110mm PVCu, it is designed for use with compatible bottle gullies and features a ring seal joint for a secure connection.

D505 200mm Gully Riser

• Product Code: D505
• Length: 200mm
• Material: 110mm PVCu
• Maximum Height Adjustment: 200mm
• Joint: Ring seal
• Compatibility: Compatible bottle gullies
• Application: Gravity drainage and sewerage systems

110mm Underground Gully Riser

The D505 gully riser provides a practical way to adjust the height of a gully grating to suit different ground levels. The riser can be cut to the required length, allowing greater flexibility during installation and when adapting existing drainage systems.

Durable PVCu Construction

Manufactured from 110mm PVCu, the D505 is designed for reliable performance in underground drainage systems. The ring seal joint provides a secure connection between compatible drainage components.

Applications

• Raising gully gratings by up to 200mm
• Adjusting drainage systems to suit ground levels
• New gully installations
• Existing drainage system alterations
• Gravity drainage systems
• Sewerage systems
