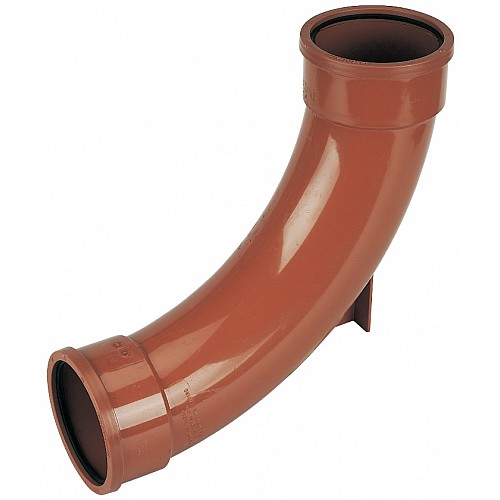

110mm Underground Double Socket Rest Bend 87.5° D571

The 110mm Underground Double Socket Rest Bend 87.5° is designed for use at the base of compatible soil systems, providing a connection between the soil system and underground drainage. Model D571 is manufactured from PVC-U and features a push-fit joint system with a seal and snap-cap mechanism.

110mm Underground Rest Bend Features

• Model: D571
• Diameter: 110mm
• Angle: 87.5°
• Type: Double socket rest bend
• Material: PVC-U
• Jointing System: Push-fit with seal and snap-cap
• Joint Type: Ring seal
• Designed for connection between compatible soil and underground drainage systems
• Suitable for gravity drainage applications
• Suitable for depths up to 10m, according to the supplied product information

110mm D571 Double Socket Rest Bend

The D571 110mm rest bend is designed for installation at the base of a compatible soil system, providing an 87.5° change of direction into the underground drainage system.

110mm Push-Fit Underground Drainage Bend

The push-fit jointing system incorporates a ring seal with a seal and snap-cap design for a secure connection. The supplied product information states that silicone lubricant can be used on the seals to ease the jointing process.

Applications

• Connecting compatible soil systems to underground drainage
• Underground drainage systems
• Gravity drainage systems
• Sewerage applications
• Applications involving high-temperature waste discharge
• Residential, commercial and industrial drainage installations
