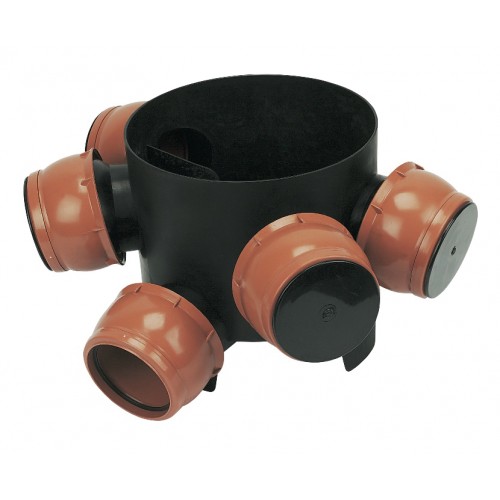

D800 Mini Access Chamber 300mm with 110mm Inlets

The D800 Mini Access Chamber is a 300mm diameter polypropylene chamber designed for use in underground drainage systems. It features five flexible 110mm inlets, each allowing up to 20° of movement in any direction to help with pipe alignment during installation.

D800 Mini Access Chamber Features

• Product Code: D800
• Internal Diameter: 300mm
• Inlets: 5 x 110mm flexible inlets
• Inlet Movement: Up to 20° in any direction
• Material: Polypropylene
• Joints: PVCu ring seal joints
• Load Capacity: Up to 35kN (3.5 tonnes)
• Application: Gravity drainage and sewerage systems

300mm Mini Access Chamber

The 300mm internal diameter access chamber provides access to underground drainage pipework for maintenance and inspection. The five flexible 110mm inlets allow pipe connections to be aligned with the chamber while providing up to 20° of movement in any direction.

Flexible 110mm Drainage Inlets

The flexible inlet design provides installation flexibility where pipe alignment needs to be adjusted. The chamber is suitable for compatible residential and commercial drainage applications.

Access Chamber Covers and Risers

The chamber is compatible with standard and screw-down covers and frames. Risers are available separately where additional chamber depth is required. The supplied information also states that the chamber is suitable for installation at depths of up to 10m.

Gravity Drainage and Sewerage

The D800 Mini Access Chamber is designed for use in gravity drainage and sewerage systems, providing access for inspection and maintenance while accommodating flexible pipe connections.
